NOTE: Status Bar is always displayed and is located at the bottom of the screen so that the driver can easily check it when mounted on a vehicle.
Click on Menu icon.
Function will be displayed
Click on Recording Method.
Once the Driving Record setting is switch to either one setting Normal Recording or Time Lapse Recording, the dashcam itself will auto format the SD card.
Please ensure to save out any important videos/files before to change this setting
Default setting: Normal Recording
Click on Recording Resolution.
The image recording resolution can be select "LOW", "NORMAL" or "HIGH" quality.
Click on HDR.
High Dynamic Range (HDR) improves the contrast in a video while maintaining clarity in high contrast or low-light conditions. This means the whole scene looks more like how your eyes see it.Click on "HDR" to be set .Select "ON" or "OFF"
Click on Parking Mode.
During the parking mode recording, user can choose either based on "Motion Sensing" or "Time Lapse" recording.
Once the dashcam entered in parking mode recording, the LCD will turns off automatically.
The LCD will turns on when it switched to Driving Mode. (Once engine starts)

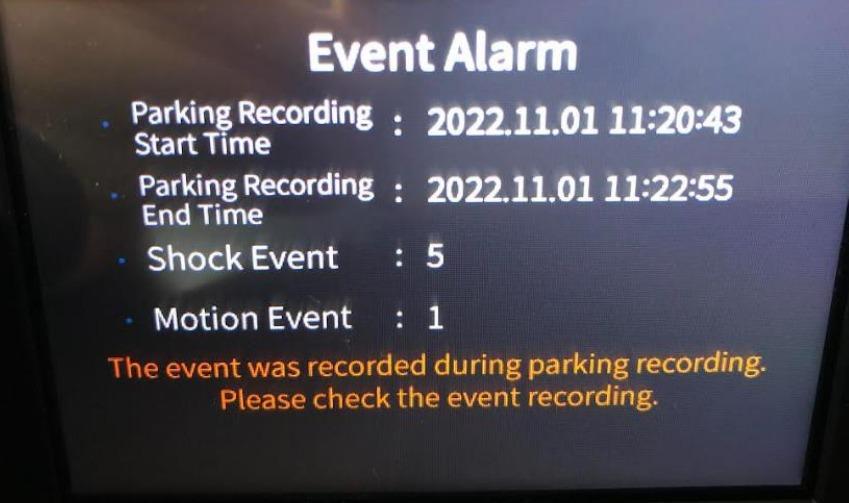

Event Alarm will prompt is there any event files (Shock/Motion) has been recorded during the parking mode recording.
Time Lapse - 7 seconds per video file. Each video file contains 100 seconds recorded video.
Motion - 30 seconds per video file.
Discharge Cut-Off Voltage allows user to choose a few pre set voltage cut off options.
The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.
Click on "Discharge cut-off voltage" to be set .
Select the voltage value to be set
Discharge Cut-Off Time allows user to choose a few pre set timer cut off options or disable the timer cut off.
The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.
Click on "Discharge Cut-Off Time" to be set .
Low Power Mode enhances the dashcam energy saving in parking mode.
Once the Low Power Mode option is activated, the dashcam will consume very low power while on standby and will only start to record upon impact.
This will help to conserve power especially when user are away from the vehicle for a longer period of time.
Dashcam will not record upon any motion but only starts to record upon a strong impact. Currently this feature is available on D10-F2W and the default setting is off
Click on the Low Power Mode to be set.
Select "ON or "OFF".
This function allows user to choose the Rear camera whether to record or not during parking mode.
Click on "Parking Record With Rear" to be set .
Select "ON" or "OFF".
This function allows user to enable or disable Parking Mode function.
Click on "Automatic Parking" to be set .
Select "ON" or "OFF".
Settings for impact and motion event sensitivity while driving and parking.
To set the Continuous (Driving) mode sensitivity
To set the Parking Shock mode sensitivity
To set the Front motion sensor sensitivity
To set the Rear motion sensor sensitivity
ADAS features are only applicable when purchase Optional Add-On GPS receiver.
If there is no GPS receiver connected to the dashcam, there will be an error message shown when ADAS is pressed.
Once the GPS is connected, user can Enable or Disable the below warning system features.
Lane Departure Warning System can be turn "ON" or "OFF".
Click on Lane Departure Sensitivity (Lane Departure Warning System) to set the sensitivity sensor.
Click on Front Car Departure (Front Vehicle Start Alarm) to turn "ON" or "OFF" the warning alarm.
Click on Front Car Collision Notification (Forward Collision Warning System) to turn "ON" or "OFF" the warning alarm.
Click on Guide to turn "ON" or "OFF" the Safety Camera Alert.
Click on Baseline Position Adjustment, to align the dashcam sensor accordingly.
Memory Assign - This function allows user to choose to prioritize the recorded videos in the memory card allocation.
| MEMORY ASSIGN |
Memory SD Card Capacity (32GB, 64GB, 128GB, 256GB) |
||
| Driving Memory Allocation | Parking Memory Allocation | Event Memory Allocation | |
| Continuous Focus - (Driving First) | 60% | 20% | 20% |
| Parking Focus | 30% | 50% | 20% |
| Event Focus | 30% | 20% | 50% |
| Continuous Exclusive - (Driving Only) | 80% | 0% | 20% |
Please note that once formatted, all the videos inside the SD card will be erased.
To choose the option to turn off the LCD screen or to tun on constantly.
To choose the the screen brightness option.
To choose the the rear camera display in normal mode or reverse mode.
To set the time accordingly.
Singapore Time Zone: GMT +08.00
To choose whether to display Speed Limit in Km/h or Mi/h or to Turn Off.
To choose whether to Turn On or to Turn Off the Event Alert Alarm
To calibrate the touch screen coordination alignment.
System information will display the Dashcam model and Firmware version.
To reset the dashcam back to factory default setting, click on "System Reset".
The dashcam will restart and back to factory default setting.
This feature is to lock the touch screen with password.
User can input the preferred 4-Digit password.
Once password has been set, the touch screen will prompt to input password in order to access the setting inside the dashcam.
