BlackVue Smart Phone App Dashcam Pairing Guides - Version (3.4.6 or Newer)
1. BLACKVUE APPS VERSION 3.4.6
1.1 UPDATES
For the new updated version BlackVue Apps 3.4.6 (26 June 2023),
- Added Wi-Fi mode: Can be accessed from the login screen and also after login when no internet connection is detected.
- DR750X-3CH PLUS - Added the option to select all three cameras for Live Event Upload.
- Bug fixes and stabilization improvements.

1.2 TO LOG IN WITH AN ACCOUNT
1.2.1 To create a new account
-
Input user name.
-
Input user's email address.
-
Create the account password.
-
Read and understand the terms and conditions and tick on the terms.
- Click on " Create Account With Email"

-
A 6-digit confirmation code will send to the user registered email for verification.

- Retrieve the 6 digit code from the registered user email address.
A sample 6 digit code to retrieve from registered user email address.

- Input the 6 digit code and click “Confirm”

- You have successfully registered an account to access BlackVue Apps.
1.2.2 Using existing account
-
Input the existing account email address and password to log in.

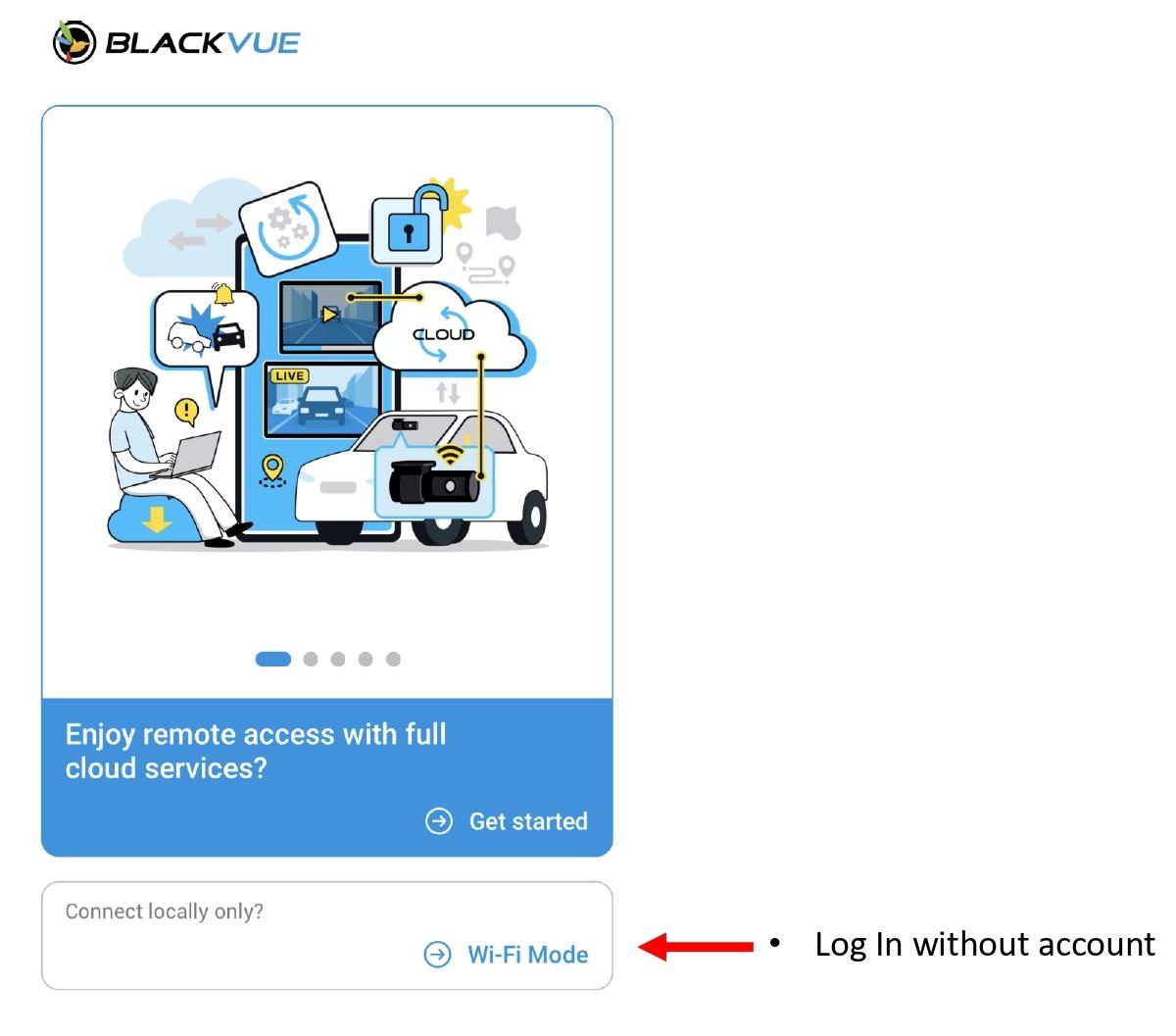

1.3 WI-FI MODE - TO LOG IN WITHOUT AN ACCOUNT

-
Click on the Wi-Fi Mode (To log in without account)
-
User can start to add camera.

2. ADD CAMERA - SEAMLESS PAIRING DASHCAM MODEL
2.1 STEPS ON ADDING SEAMLESS PAIRING DASHCAM MODEL
- Select "Seamless Pairing" for dashcam that do have seamless pairing feature.
Dashcams that have seamless pairing features: DR970X, DR770X, DR900X, DR750X
- Once selected. click on "Next"

- Locate the dashcam SSID and click on it.

- Place your hand on the dashcam touch sensor to pair it.
- Once paired, it will shown on screen.
- Camera now is added and verified.

2.2 CLOUDS CONNECTION
- For user using Cloud features, the cloud connection can only be configured by logging in using an account.
1.2 TO LOG IN WITH AN ACCOUNT
- Click "Later" if do not wish to set the cloud connection settings.
Click "Register and connect" if wish to set the cloud connection settings.

- Select "Allow" or "Don't Allow" for GPS speed and location tracking.

2.2.1 SIM Card Configuration
- Select "SIM card" to set the SIM card setting then click "Next".
Please ensure the SIM card is inserted into the Built-in SIM card reader or CM100LTE Module.

- New SIM card will be detected with the information shown.
- Input the SIM card Telco APN and click "Save".
Example: Telco: M1 APN: sunsurf
Telco: Singtel APN: e-ideas
Please refer to the below link for more Telco's APN
Telco's APN

- Once SIM card is activated, cloud connection is established. Click "Ok".

2.2.2 Wi-Fi Hotspot Configuration
- Select "Wi-Fi Hotspot" to configure then click "Next".

- Choose the Wi-Fi hotspot and input the password.

- Once connected, camera can accessed via cloud.
3. ADD CAMERA - WI-FI MODELS BLACKVUE DASHCAM
3.1 STEPS ON ADDING BLACKVUE DASHCAM - WI-FI METHODS
- Click on the menu bar "Camera"
- Click on add camera "+Camera"

- Select "Wi-Fi Models" only for dashcam that do not have seamless pairing feature.
Dashcams that do not have seamless pairing feature : DR590X, DR590W, DR650, DR750S ..
- Once selected, click "Next"

- Before clicking "Continue", Go to -Phone Setting - Wi-Fi connection

- Find the dashcam SSID that need to be connected.
- Input the password for the selected dashcam.
Password can be found at the box of the dashcam or at the dashcam body itself.
- Dashcam is connected once password is verified.

- Go back BlackVue App and click "Continue".

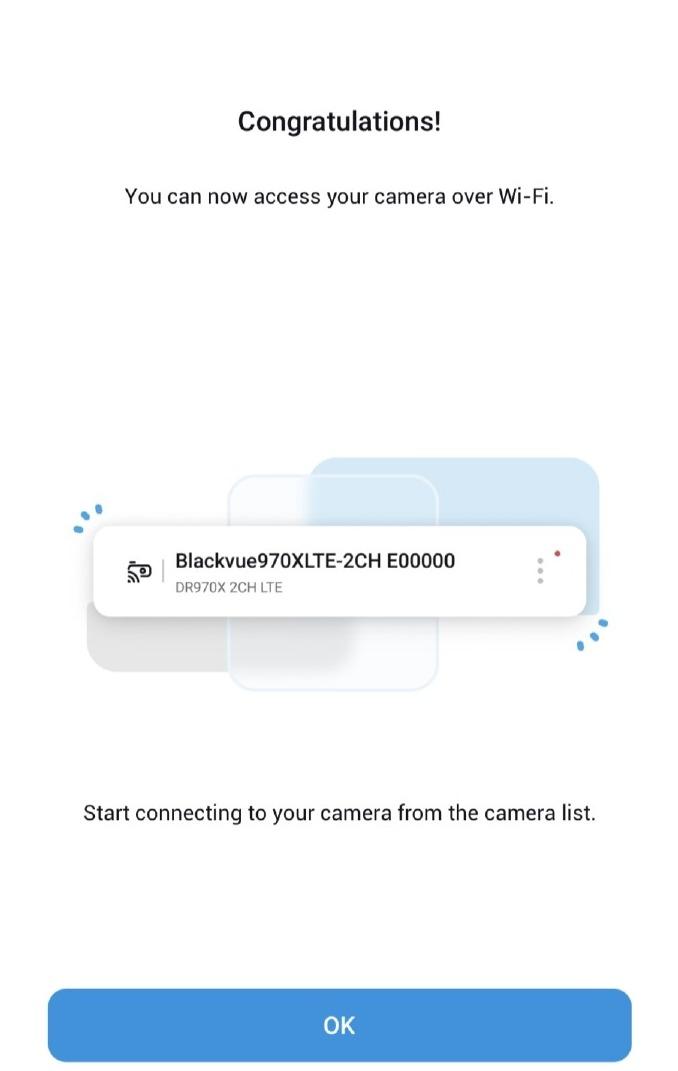

- The camera is successfully added in the BlackVue App camera list.

- Click on the added camera to access the camera's recorded videos and settings.
