VUEROID WI-FI APPLICATION APPS





VUEROID APP SETUP TUTORIAL





1.0  APP DOWNLOAD AND INSTALLING



1.1 App Store Download

1. Search for "Vueroid" and download the app.

2. For Android users, please download the app from "Google Play".

3. For IOS users, please download the app from "App Store"

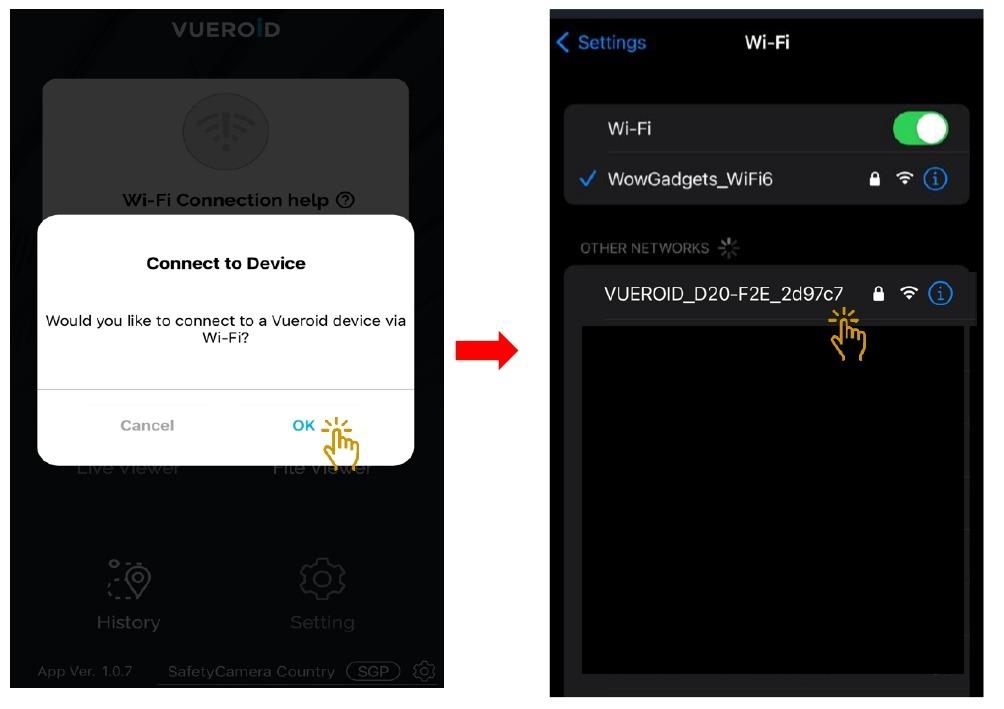

1.2 Wi-Fi Application Connection

1. Turn "ON" the Wi-Fi button on the dashcam.

2. Open Vueroid App.

3. Tap on "OK" once the pop-up screen is shown and it says "Connect to device".

4. In the Wi-Fi network listing, click on the VUEROID dashcam SSID in the form of "VUEROID_D20_F2E_XXXXXX"

5. Key in the password. Default password is "12345678"

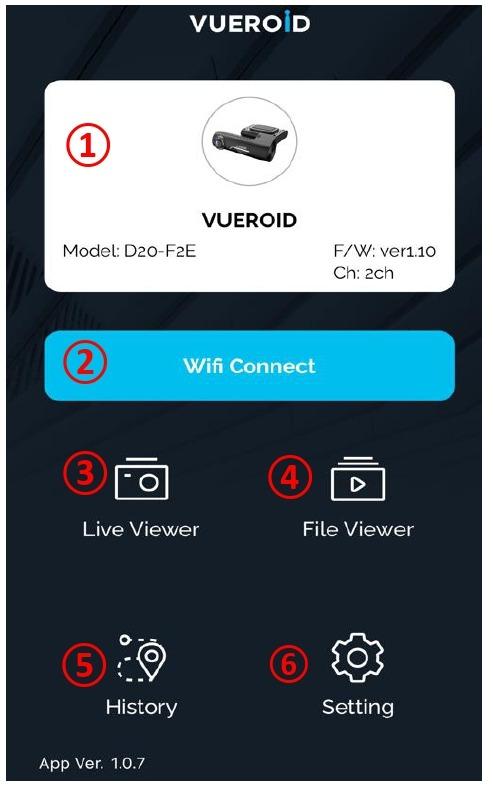

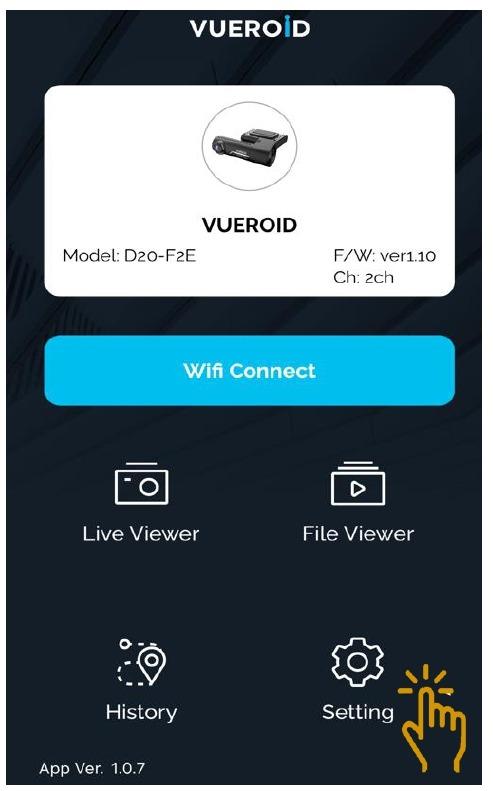

1.3 Wi-Fi Application Start-up Screen



1. Wi-Fi Status     : Display Wi-Fi status and the name of the connected device.

2. Wi-Fi Connect  : Enable or Disable Wi-Fi connection.

3. Live Viewer      :  View the front / rear live stream

4. File Viewer       : Find the recording files in different folders

5. History              : Not Applicable for model D20-F2E

6. Setting               : Allow user to get unit's settings switched.



2.0  SETTING

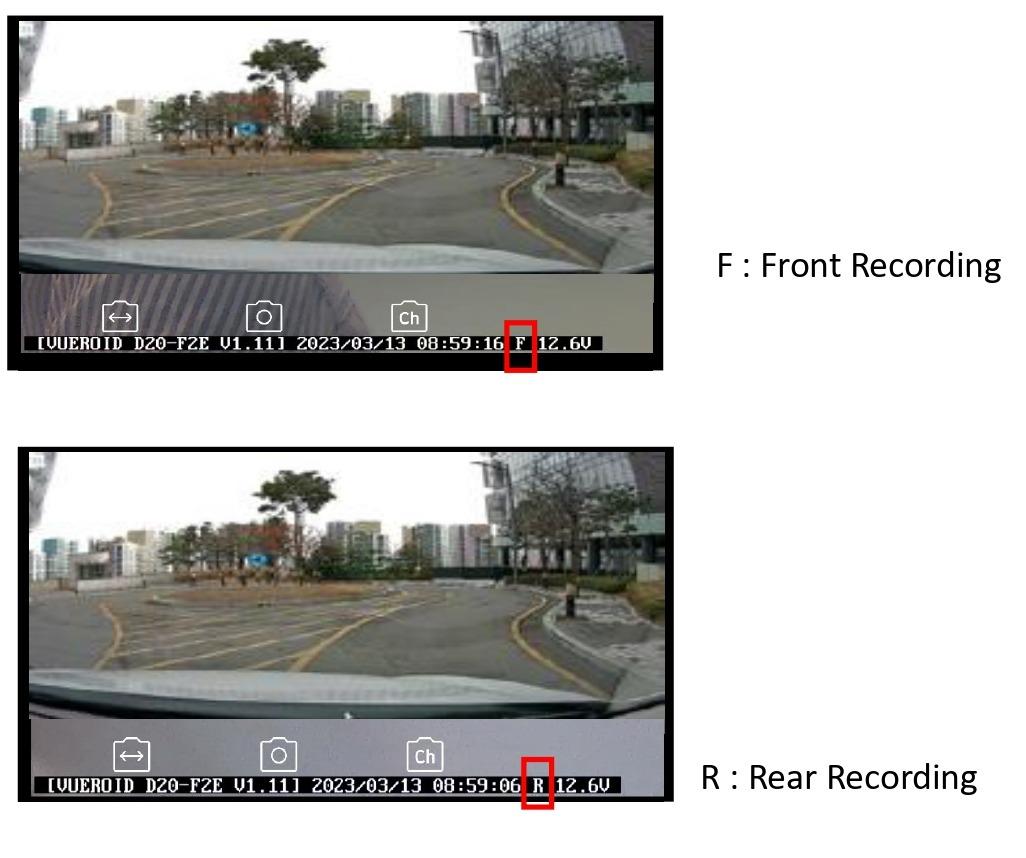

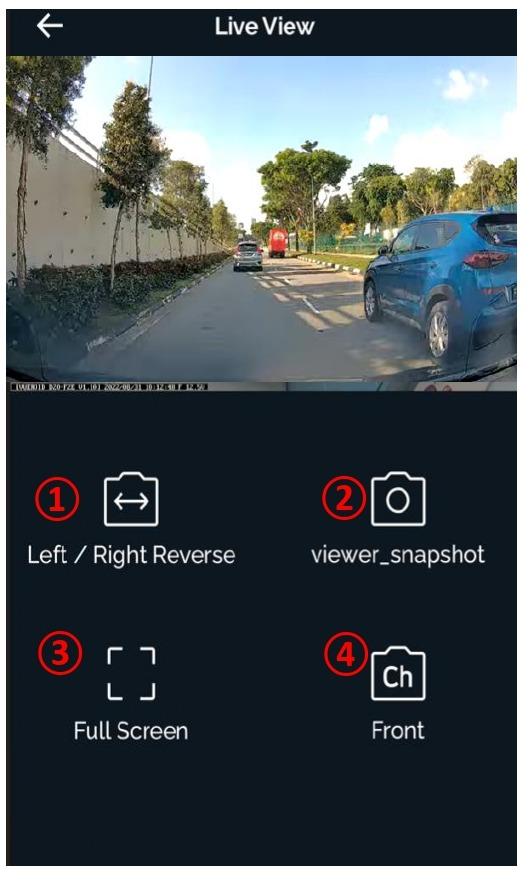

2.1 Live Viewer



1.  Left/Right Reverse : Switch to Left / Right viewing image.

2.  Snapshot                 : Capture the display image.

3.  Full Screen              : Display the full screen

4.  CH (Front/Rear)     : Switch to Front / Rear camera image.





2.2 Vueroid Dashcam Setting - Recording



To change the dashcam setting , click on "Setting" icon.

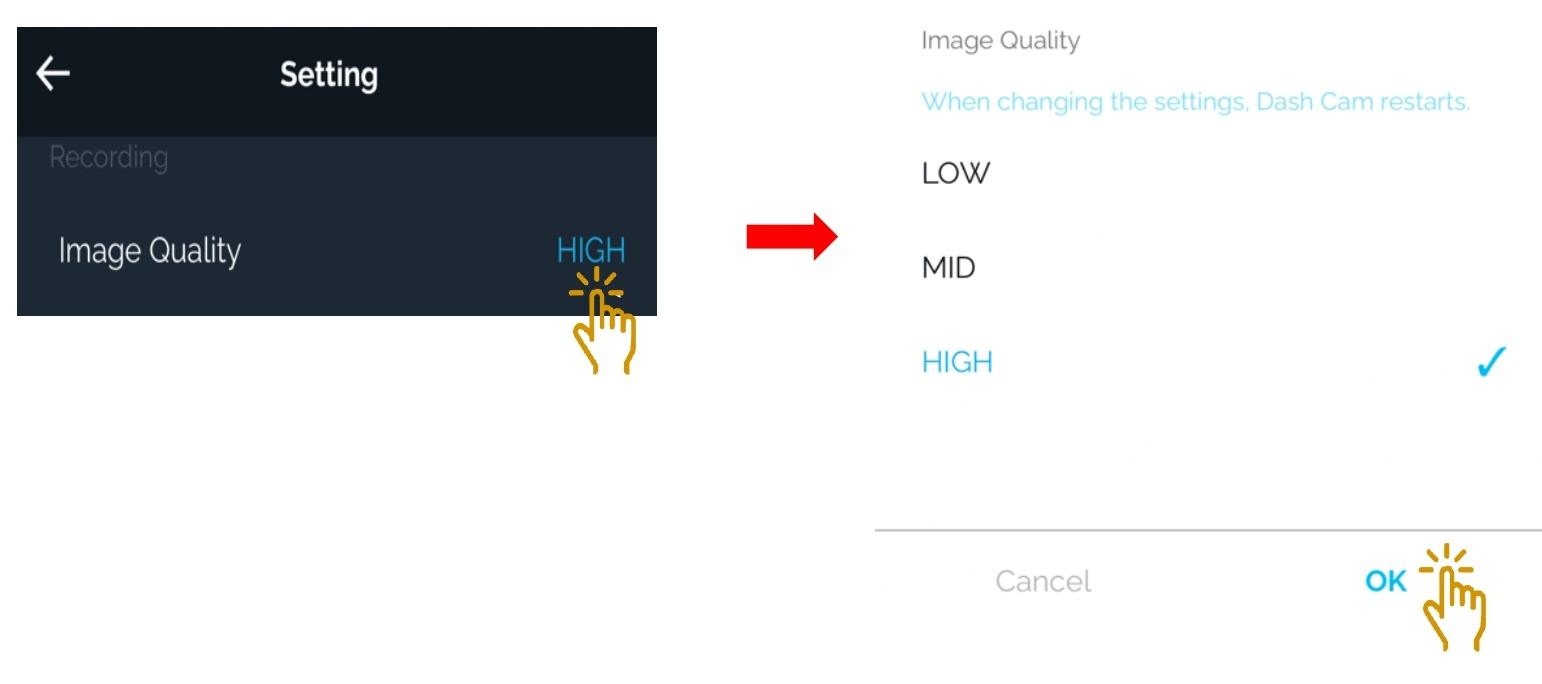

2.2.1 Recording - Image Quality


1. Choose the type of "Image Quality" to be set .


2. Select "HIGH" or "MID" or "LOW"


3. Click "OK" once selected.

4. Once saved, the dashcam will restart itself.

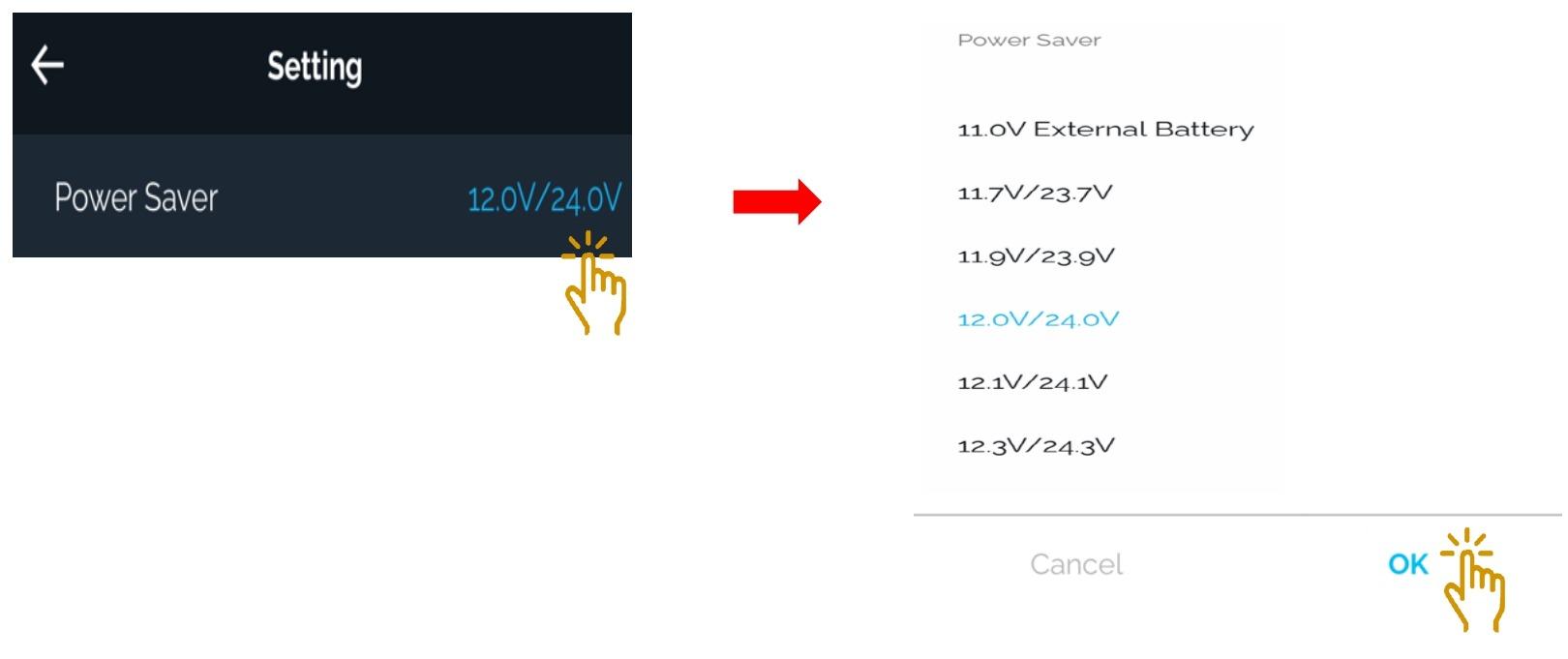

2.2.2 Recording - Power Saver

Power saver allows user to choose a few pre set voltage cut off options.

The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.

1. Click on "Power Saver" to be set.


2. Select the voltage value to be set.


3. Click "OK" once selected.

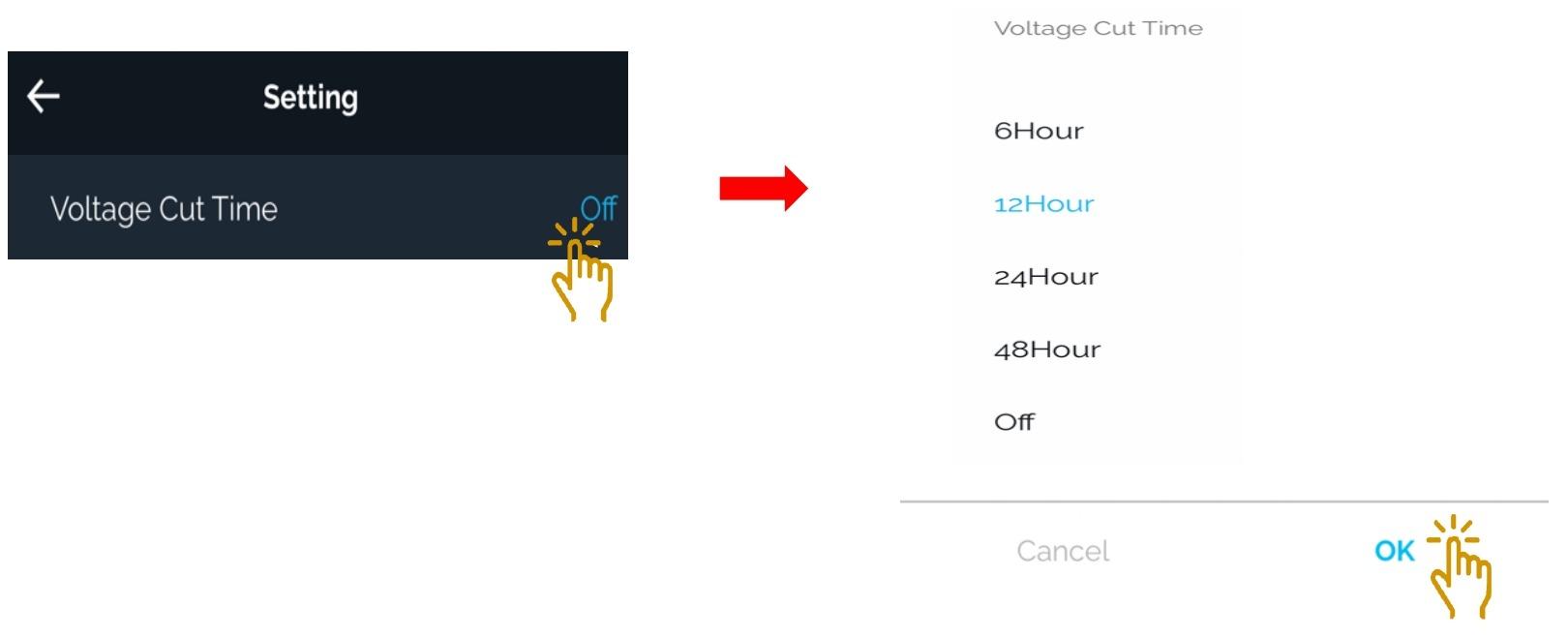

2.2.3 Recording - Voltage Cut Time

Voltage Cut Time allows user to choose a few pre set timer cut off options or disable the timer cut off.

The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.

1. Click on "Voltage Cut Time" to be set.


2. Select the cut time to be set.


3. Click "OK" once selected.

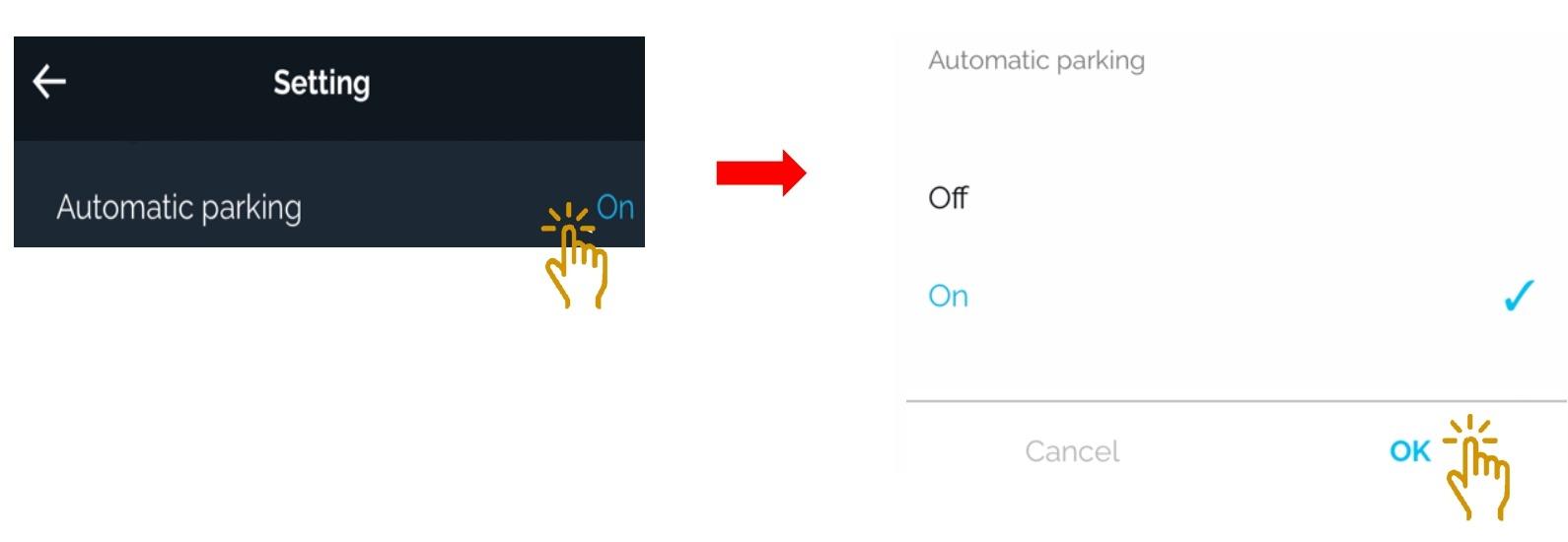

2.2.4 Recording - Automatic Parking

To enable or disable parking mode recording

Parking mode recording only able to activate if the dashcam power supply cable is hard wired.

1. Click on "Automatic Parking" to be set.


2. Select "ON" or "OFF".


3. Click "OK" once selected.

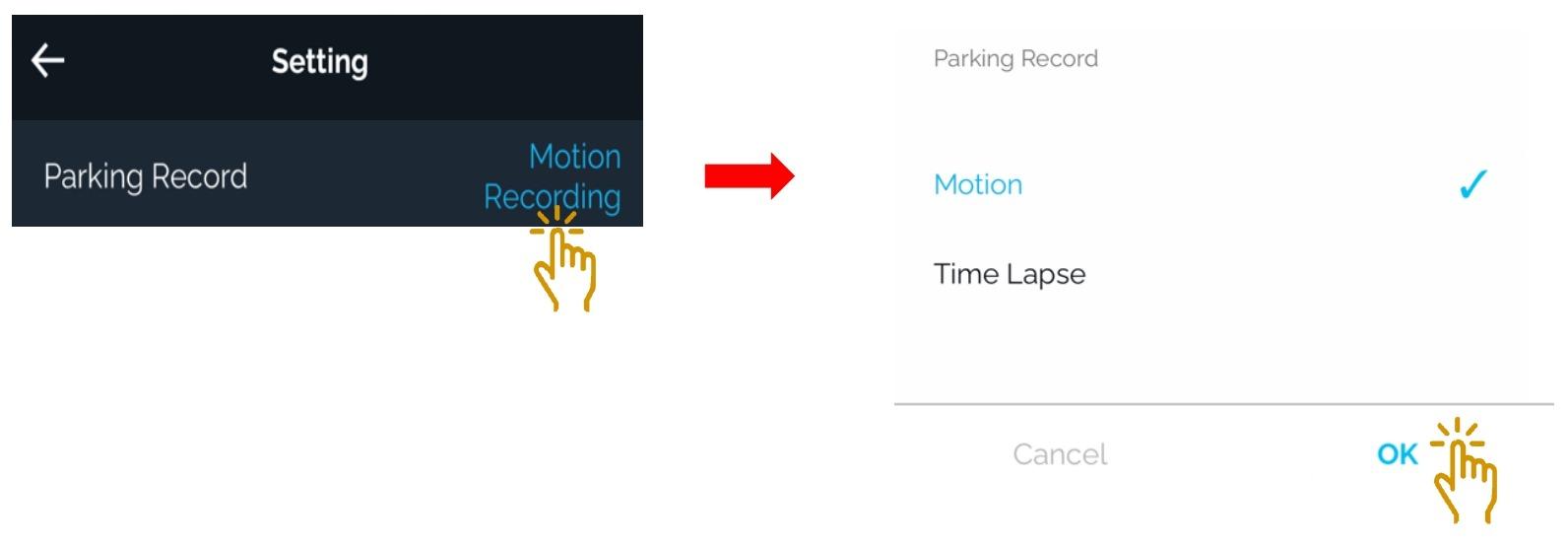

2.2.5 Recording - Parking Record

During the parking mode recording, user can choose either based on time lapse recording or recording after motion detected.

1. Click on "Parking Record" to be set.


2. Select "Time Lapse" or "Motion".


3. Click "OK" once selected.

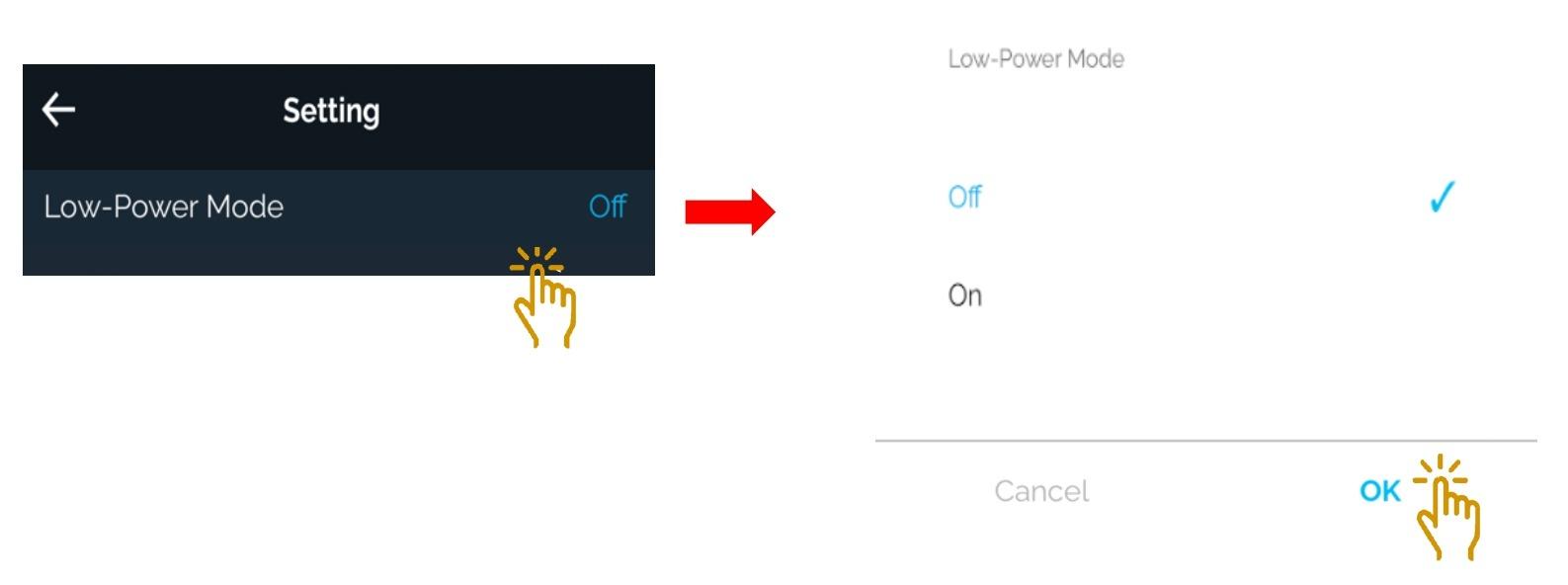

2.2.6 Recording - Low Power Mode

Low Power Mode enhances the dash cam’s energy saving in parking mode.

Once the Low Power Mode option is activated, the dashcam will consume very low power while on standby and will only start to record upon an impact.

This will help to conserve the power especially when you will be away from your car for a longer period of time.

1. Click on "Low-Power Mode" to be set.


2. Select "ON" or "OFF".


3. Click "OK" once selected.

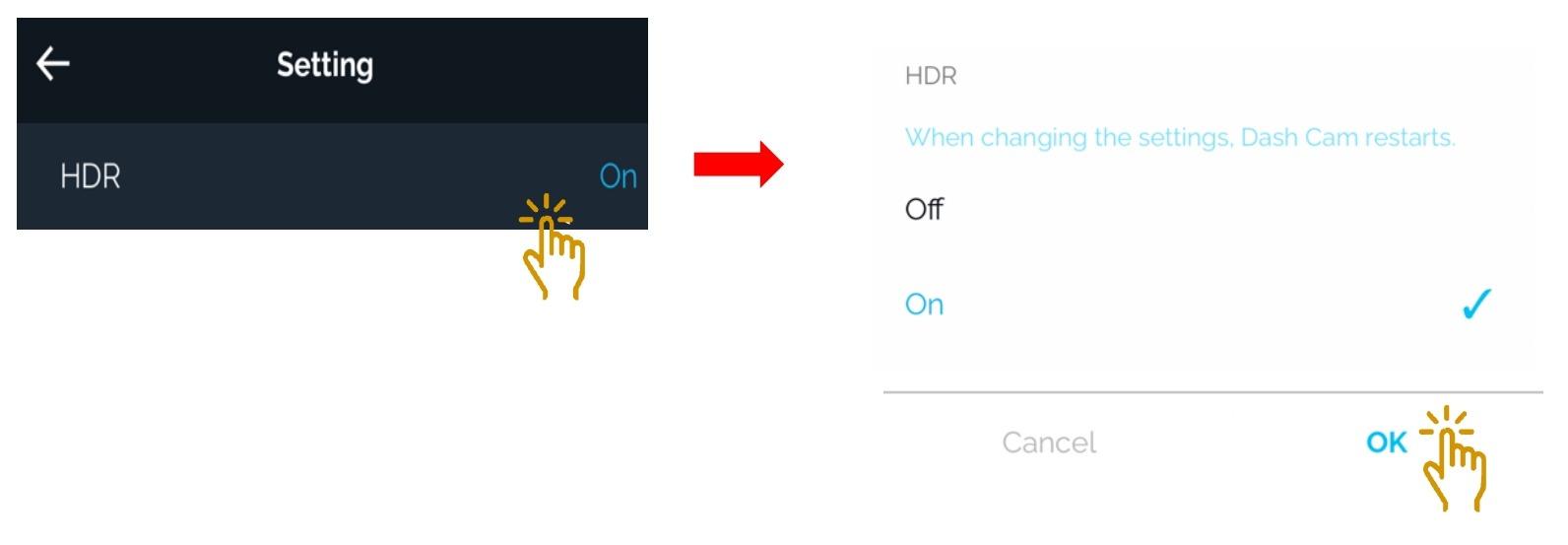

2.2.7 Recording - HDR



High Dynamic Range (HDR) improves the contrast in a video while maintaining clarity in high contrast or low-light conditions. This means the whole scene looks more like how your eyes see it.

1. Click on "HDR" to be set.


2. Select "ON" or "OFF"


3. Click "OK" once selected.


4. Once saved, the dashcam will restart itself.

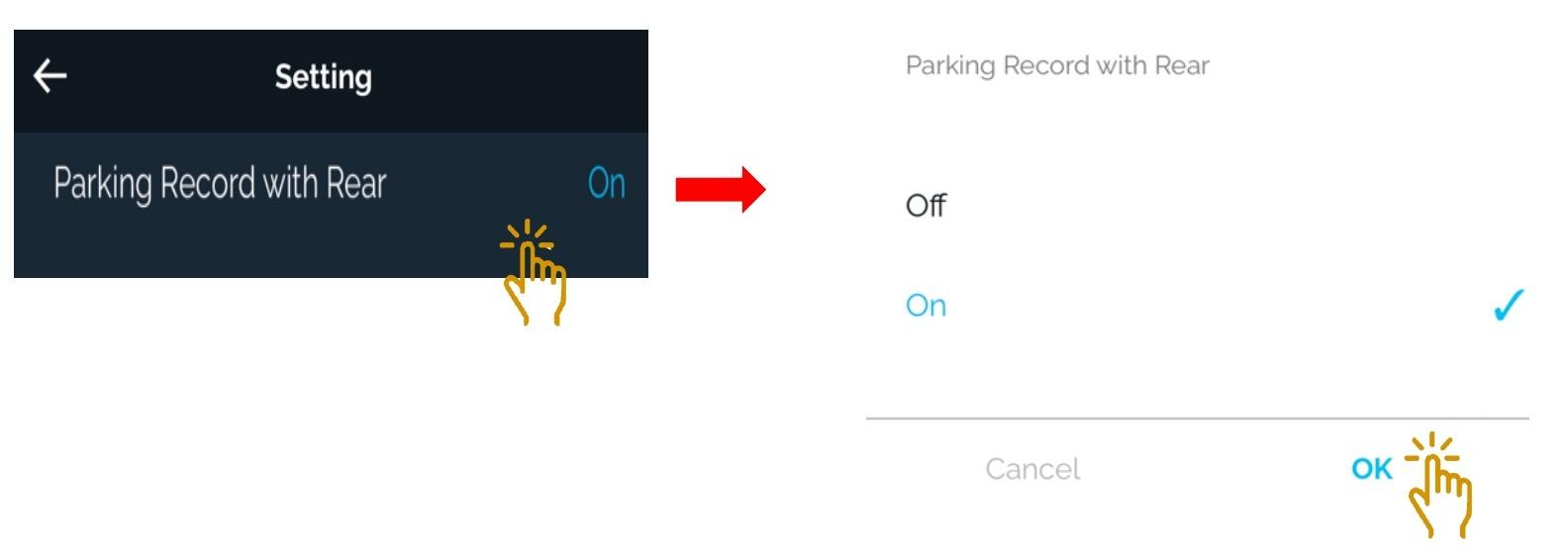

2.2.8 Recording - Parking Record with Rear



This function allows user to choose the Rear camera whether to record or not during parking mode.

1. Click on "Parking Record With Rear" to be set.


2. Select "ON" or "OFF".


3. Click "OK" once selected.

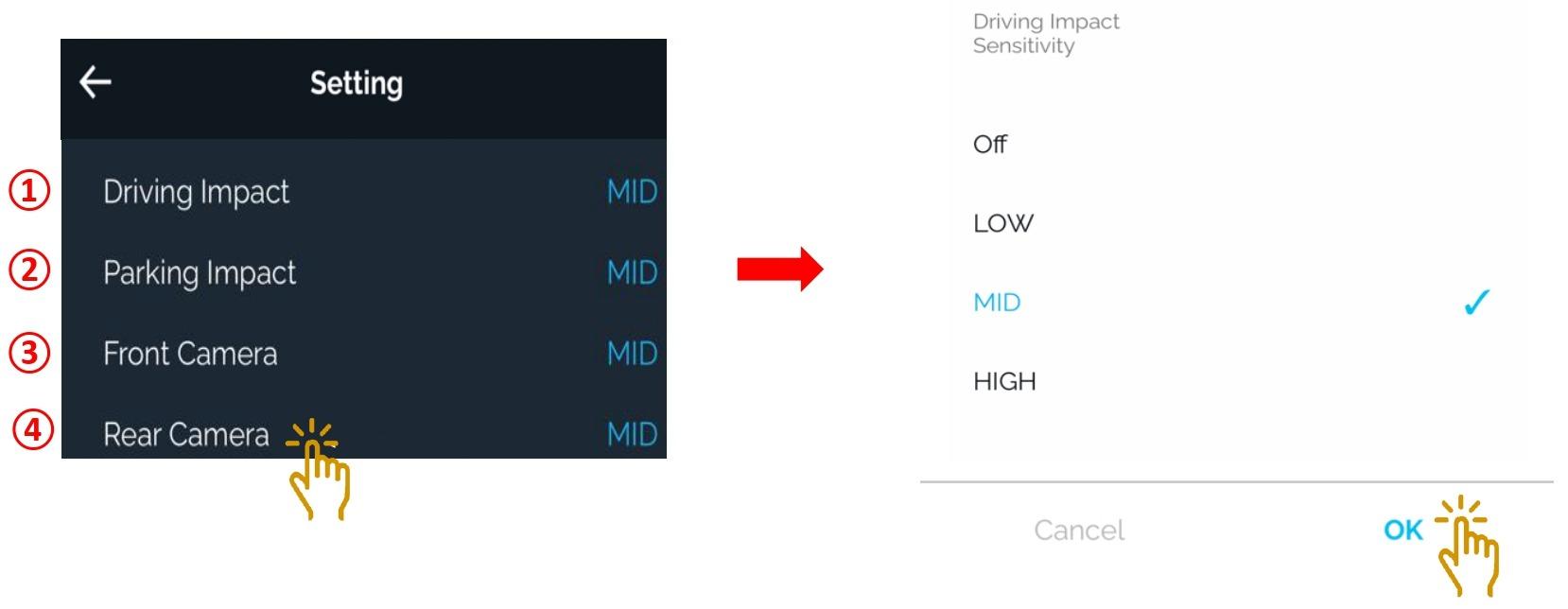

2.3 Vueroid Dashcam Setting - Event

Settings for impact and motion event sensitivity while driving and parking.

1. Driving Impact Sensitivity


2. Parking Impact Sensitivity


3. Front Camera Motion Sensitivity


4. Rear Camera Motion Sensitivity

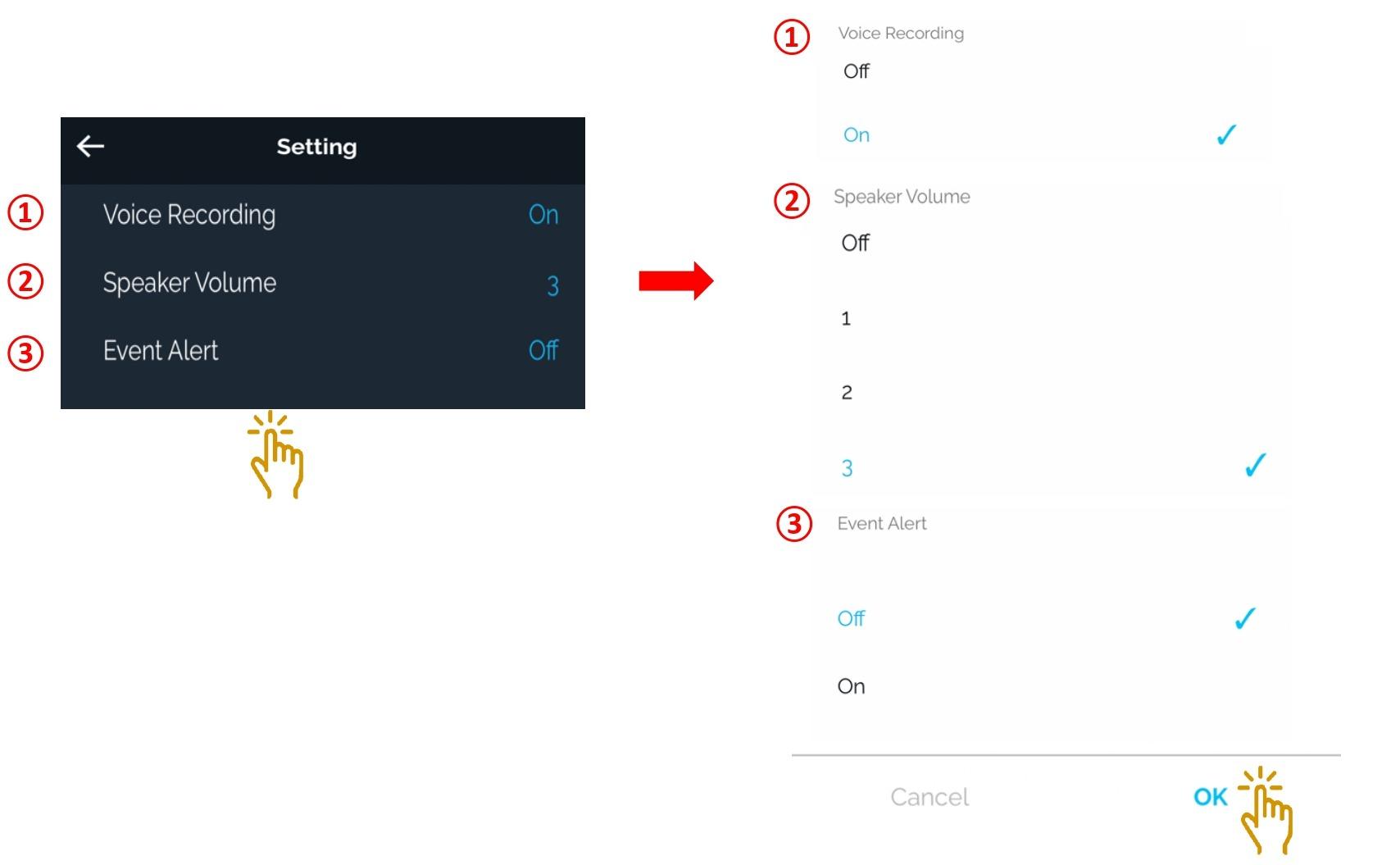

2.4 Vueroid Dashcam Setting - Sound

1. Voice recording    -  It can be turn on or turn off

2. Speaker Volume   - Speaker volume can be adjusted accordingly or to be turn on or turn off.

3. Event Alert            - Notification event alert can be turn on or turn off when there is an impact detected.

4. Click "OK" once selected.

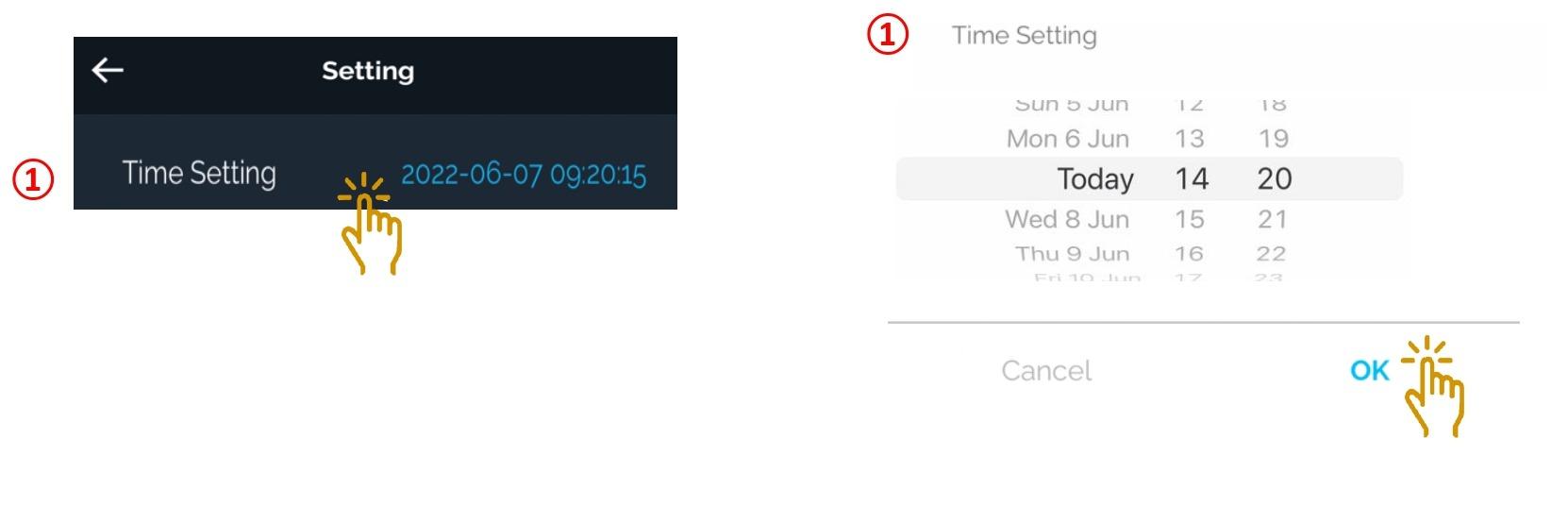

2.5 Vueroid Dashcam Setting - Time

1. Time Setting  -  Manual time setting

2. Click "OK" once selected.

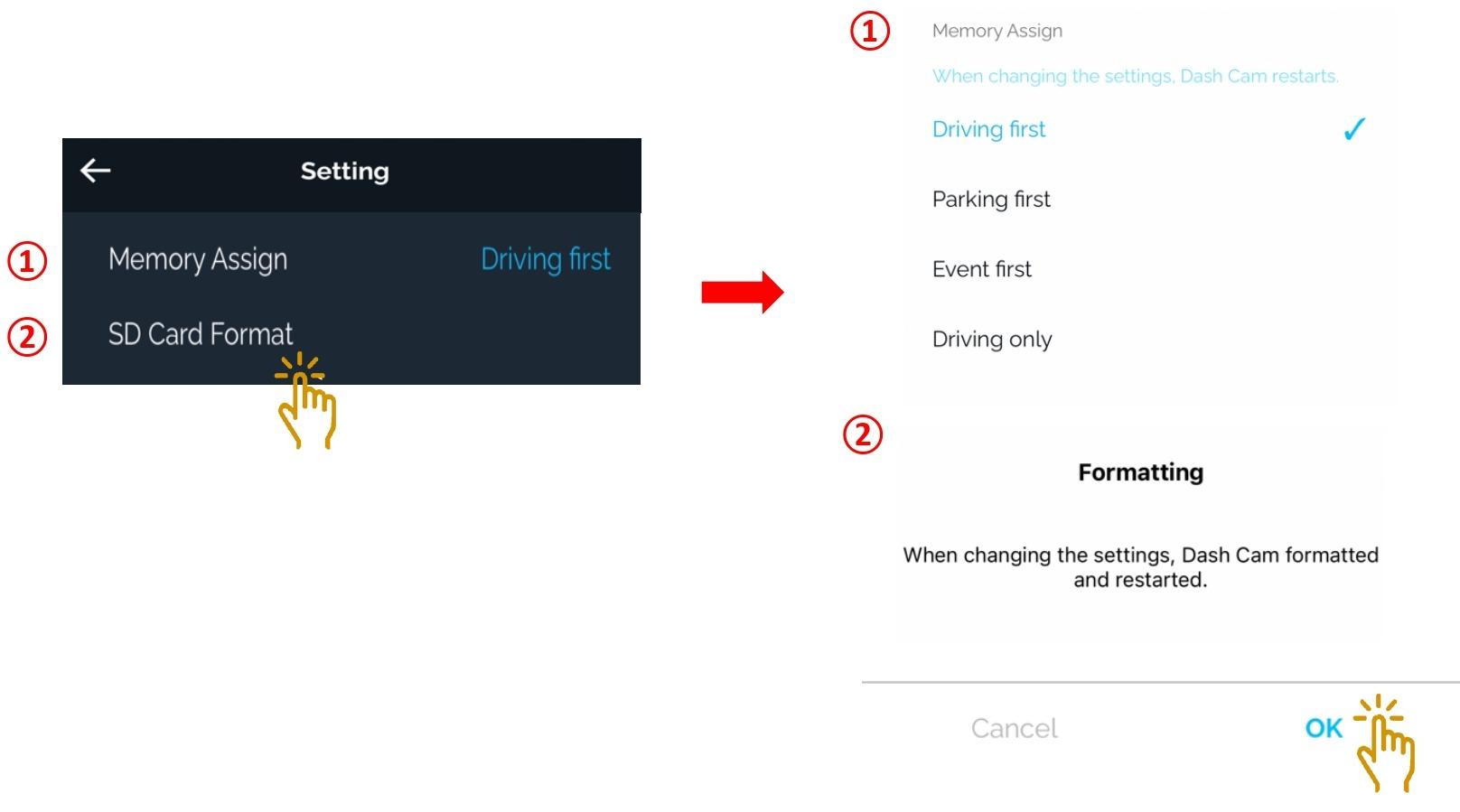

2.6 Vueroid Dashcam Setting - Memory



1. Memory Assign   - This function allows user to choose to prioritize the recorded videos in the memory card allocation.



2. SD Card Format  - To format the SD Memory card.

3. Once saved, the dashcam will restart itself.

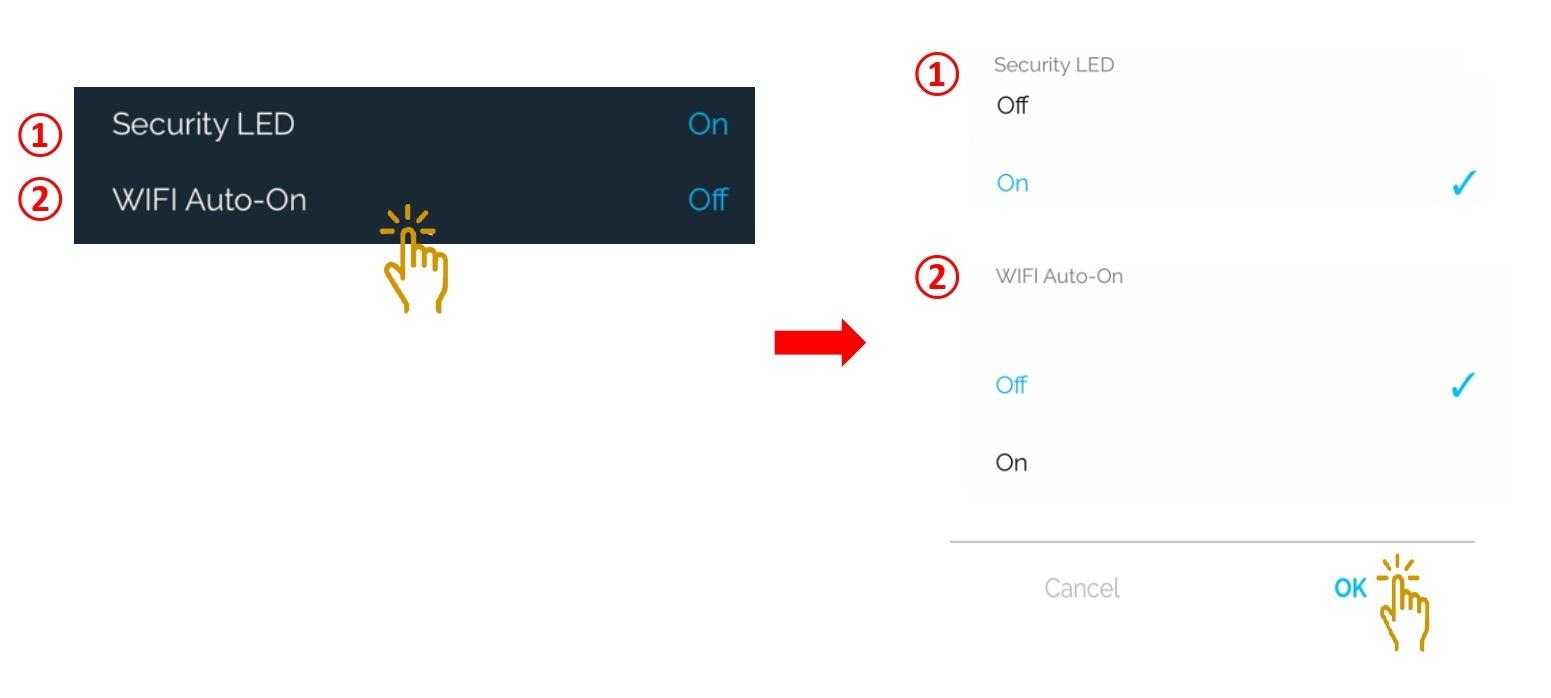

2.7 Vueroid Dashcam Setting - System

1. Security LED    -   It can be set to turn "ON or "OFF"

2. WI-FI Auto-On   -  Once the Wi-Fi is set to Auto ON, whenever the dashcam starts, the Wi-Fi will be set to turn on.

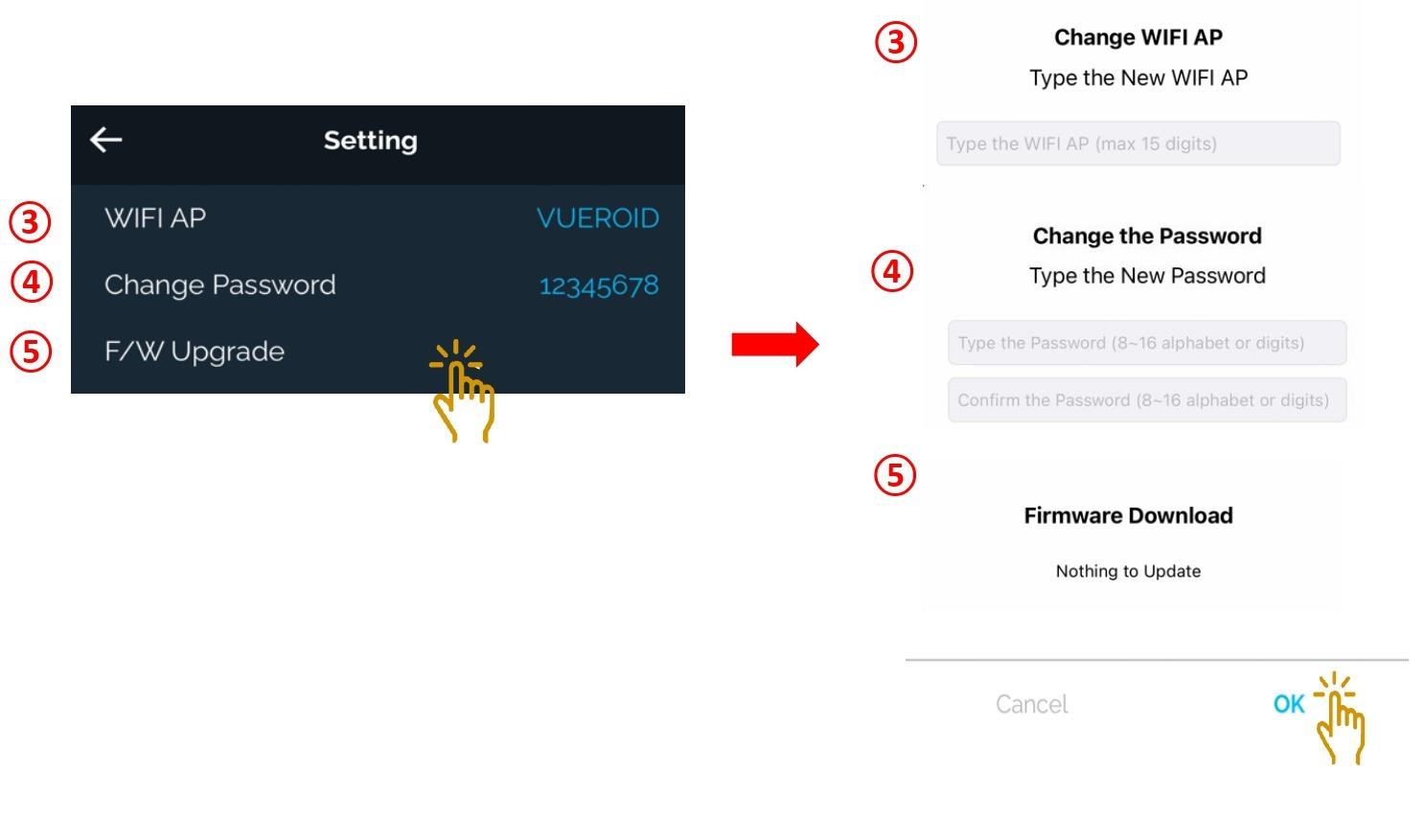

3. WI-FI AP             - In the Wi-Fi network listing, click on the VUEROID dashcam SSID in the form of "VUEROID_D20_Q2_XXXXXX". Allow user to change the SSID naming.

4. Change Password              - Password can be change with 8-16 alphabet or digits. Default password is "12345678"

5. F/W Upgrade                     -  Any latest firmware will be notified and can be update.

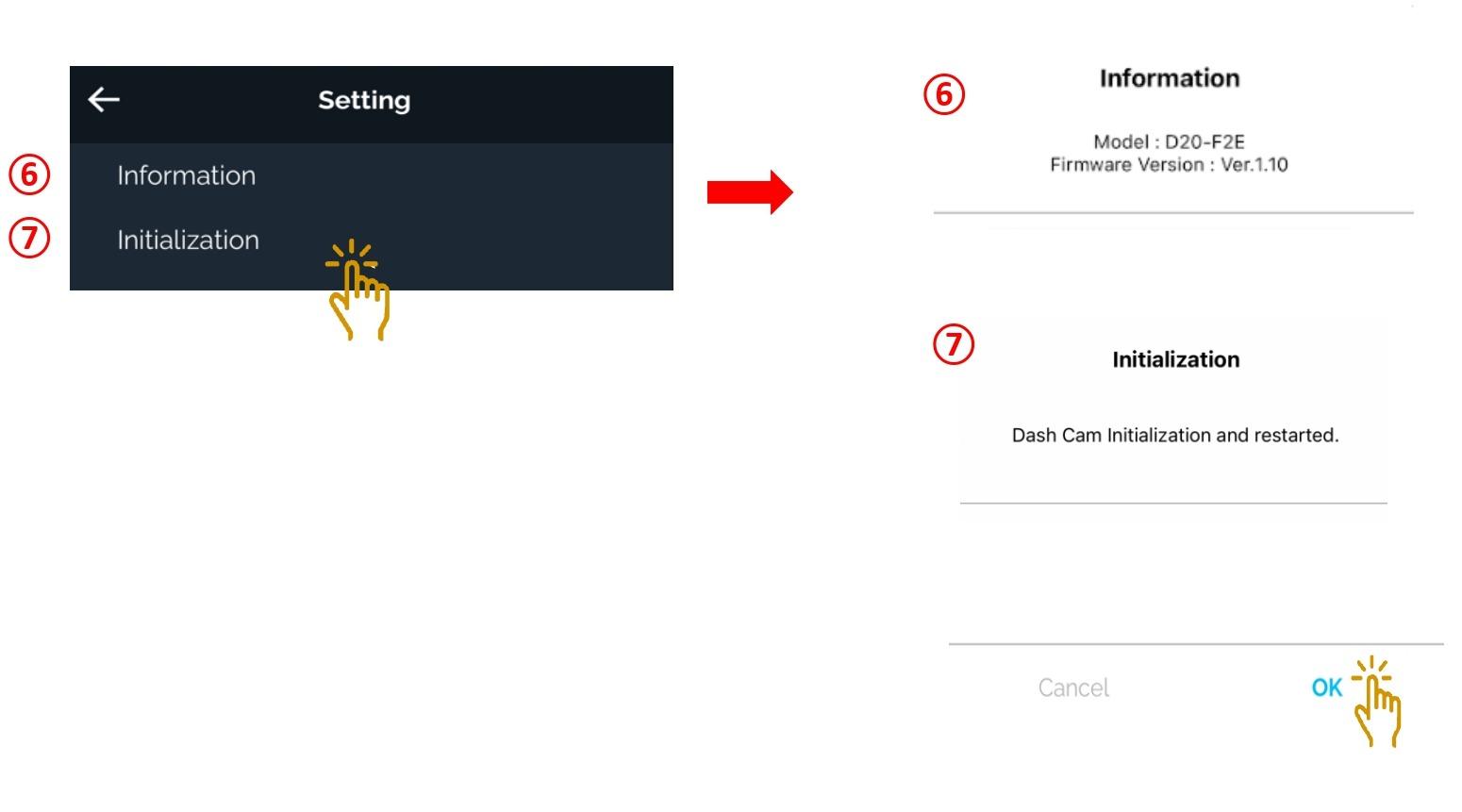

6. Information  - Dashcam model and firmware version will be shown in the information

7. Initialization  - To reboot the dashcam back to factory default setting.

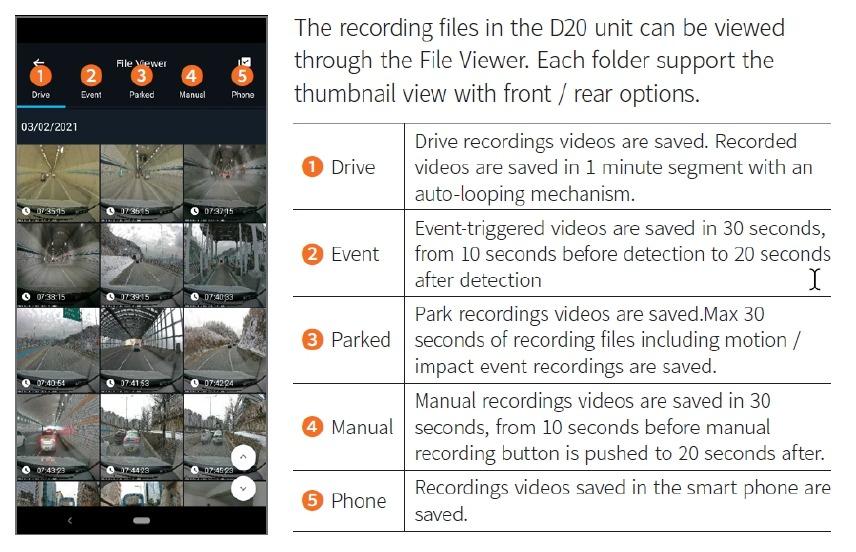

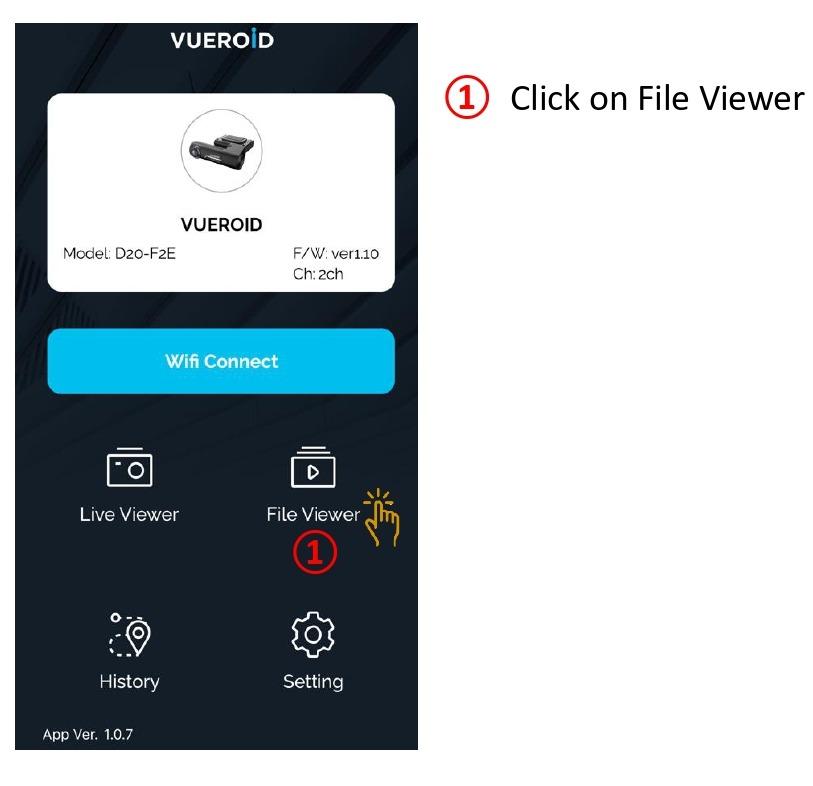

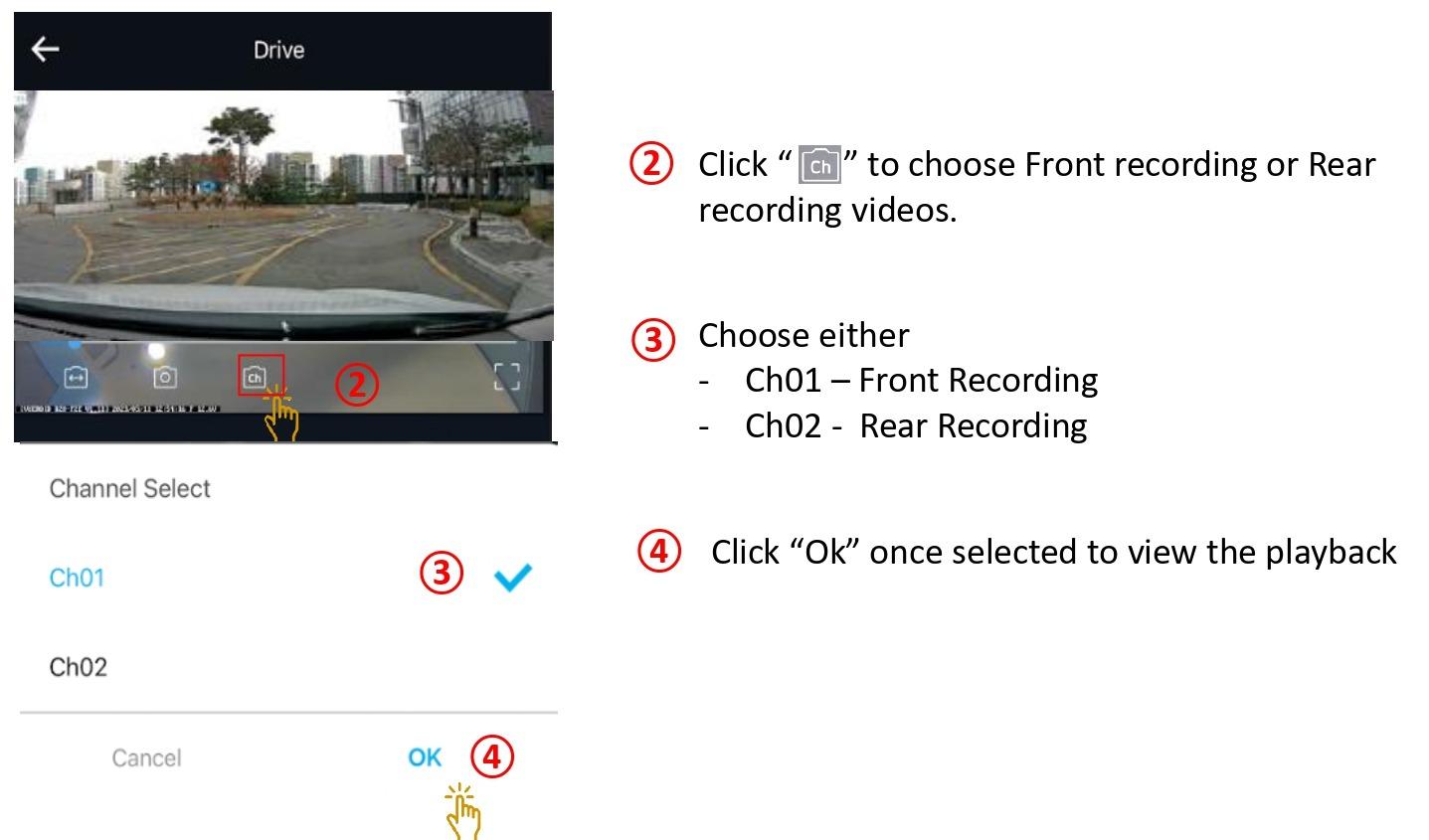

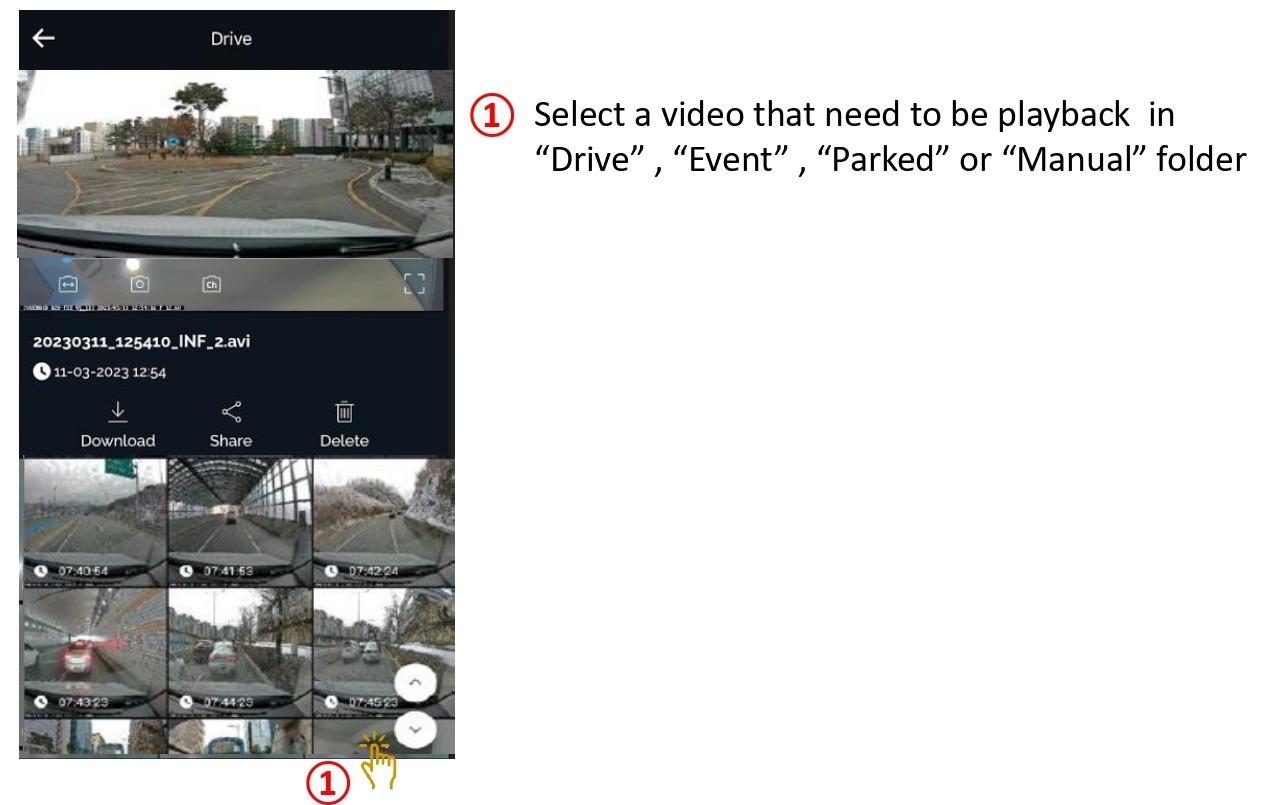

3.0  VIEW THE RECORDING (FILE VIEWER)

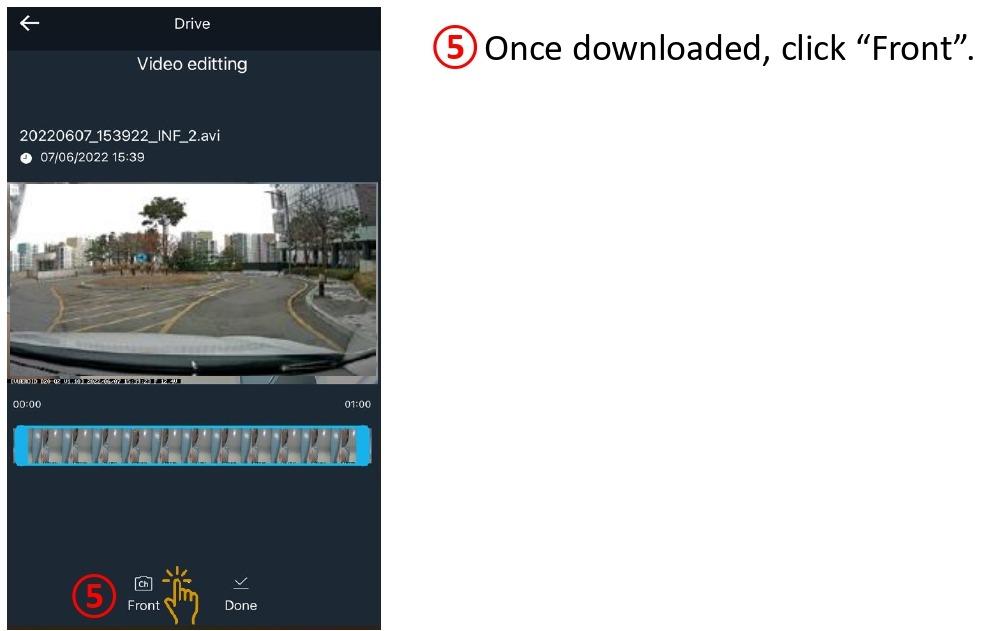

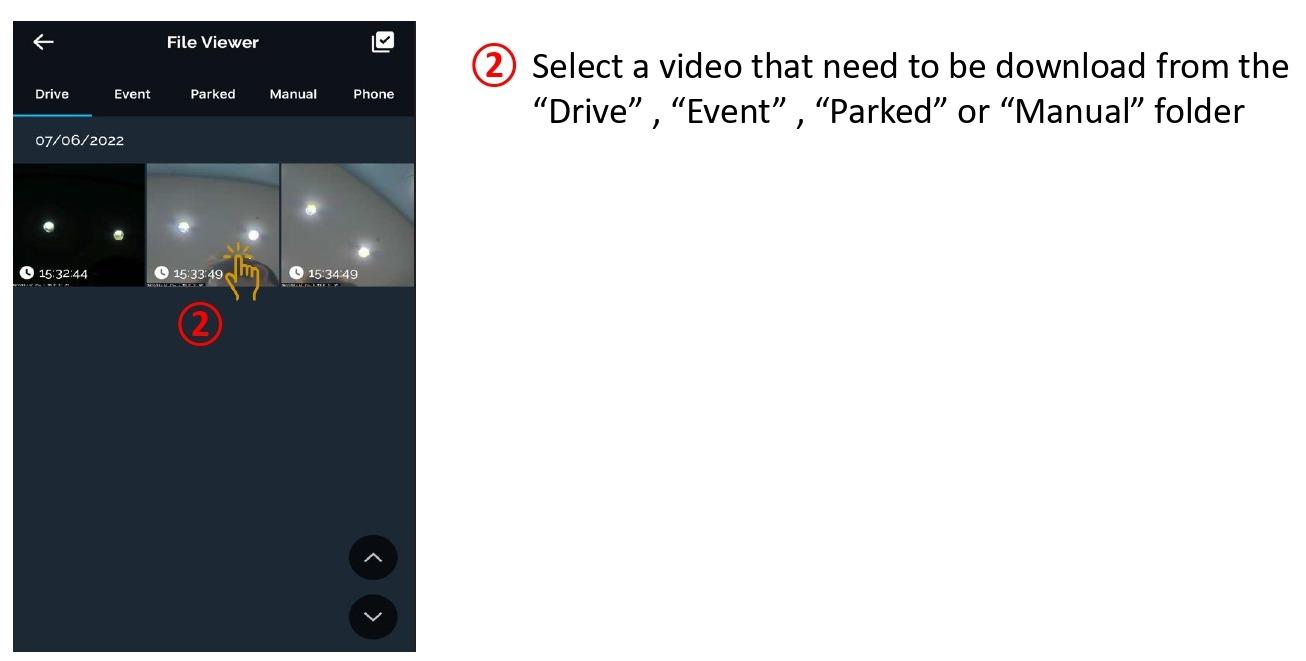

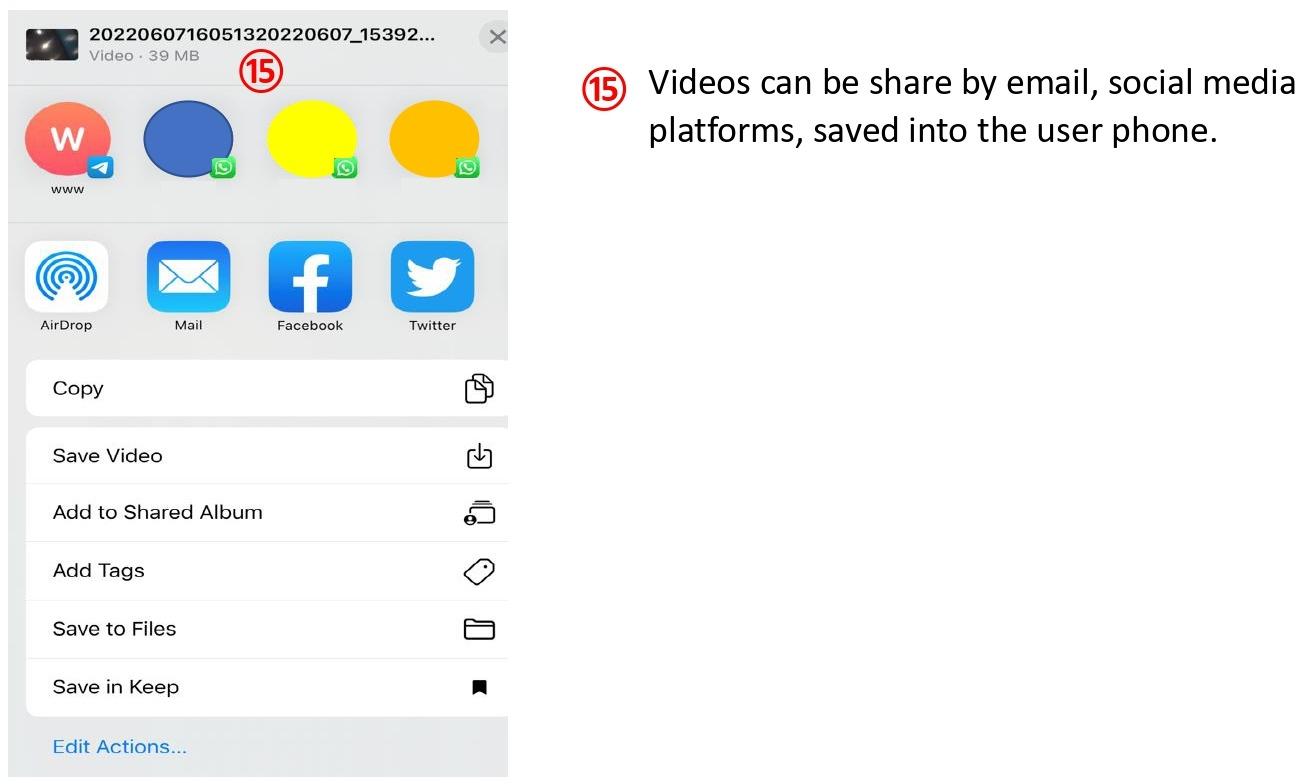

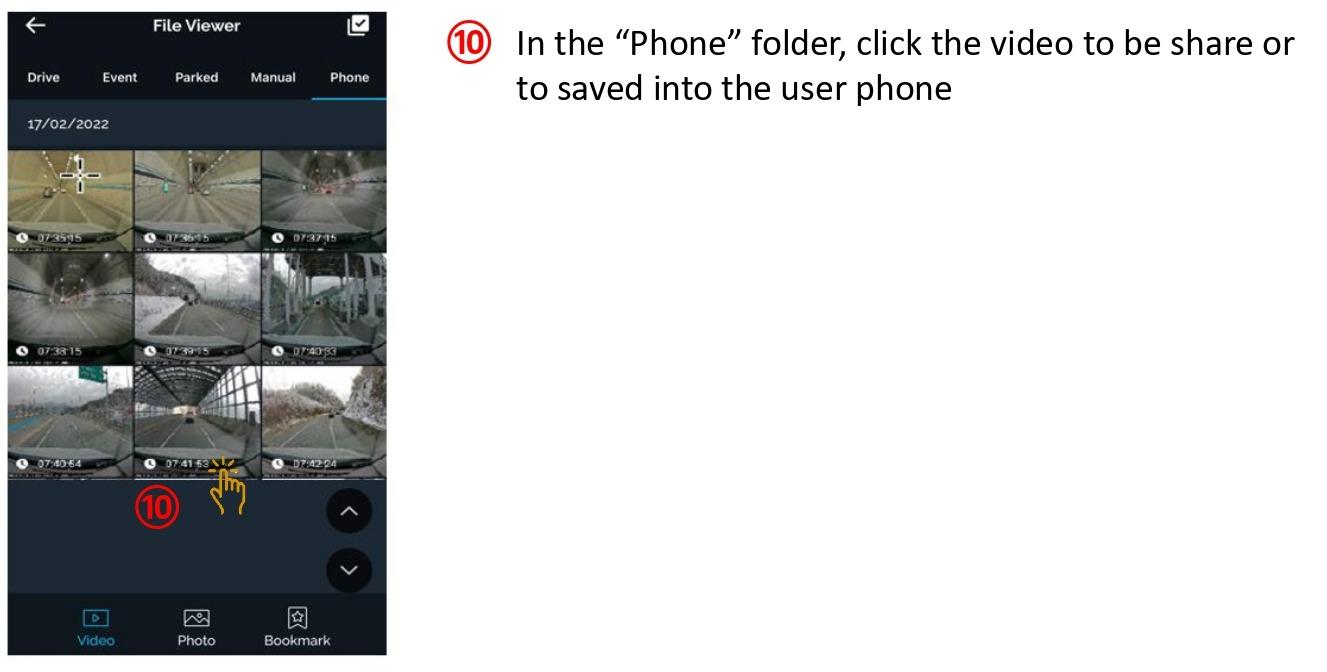

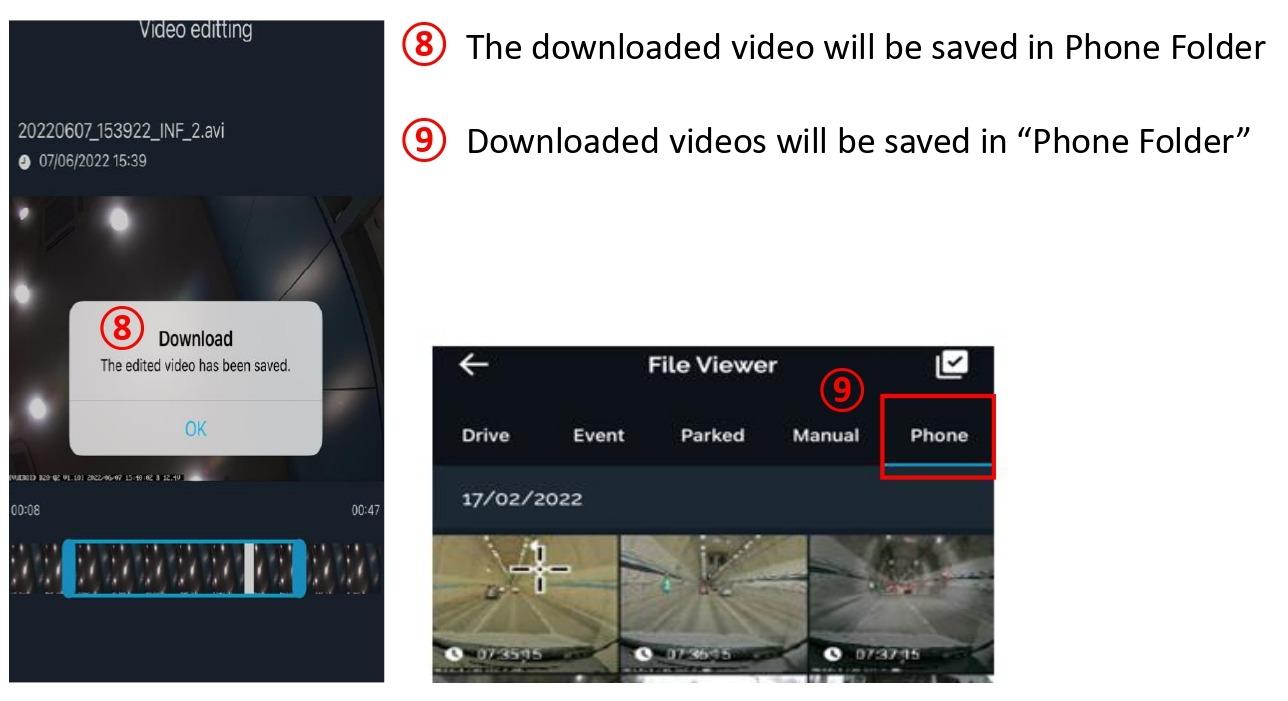

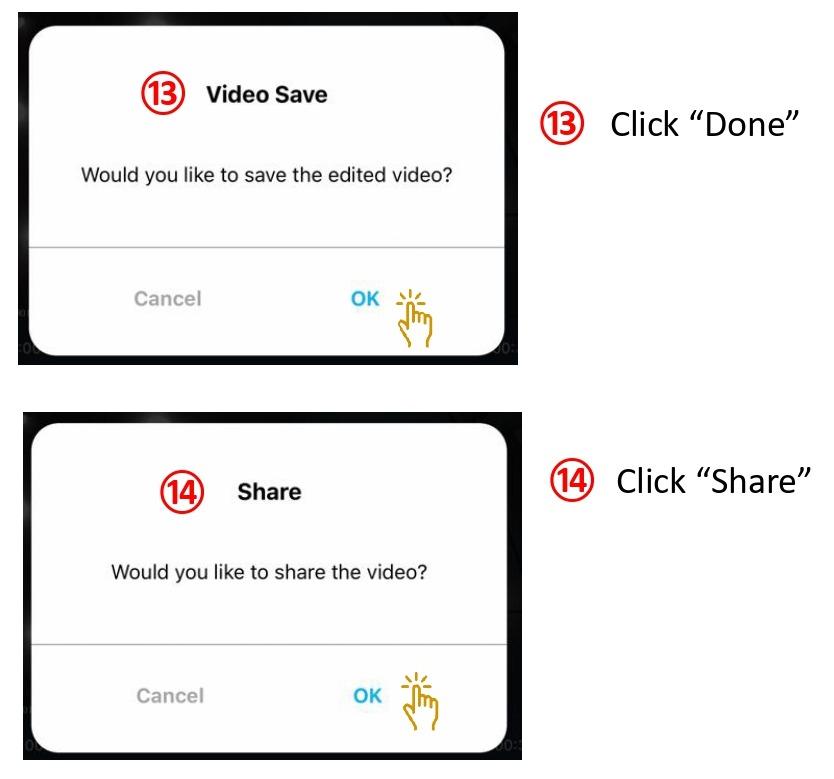

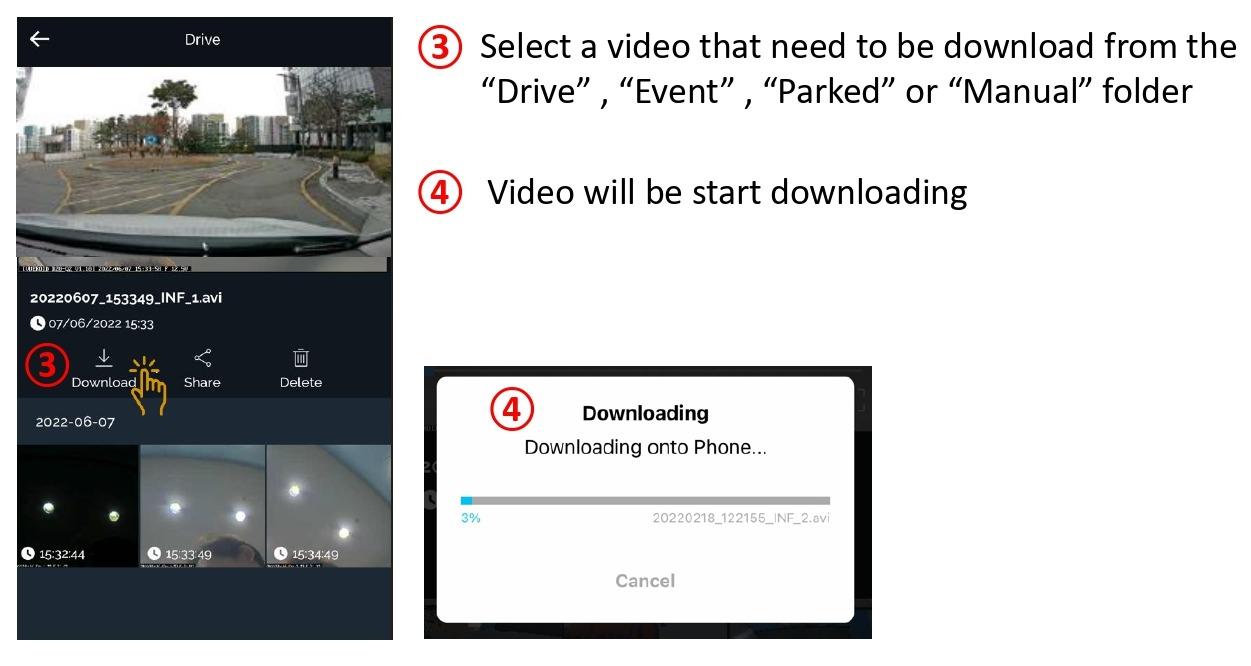

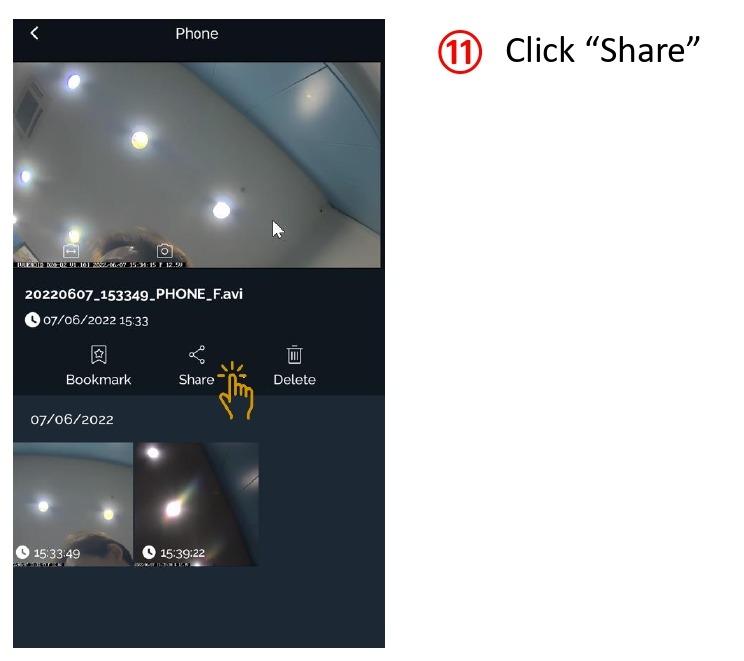

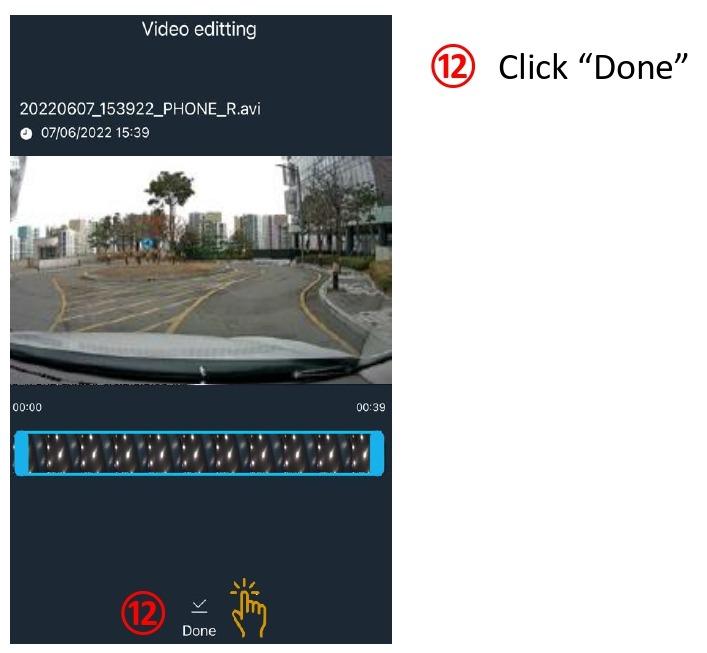

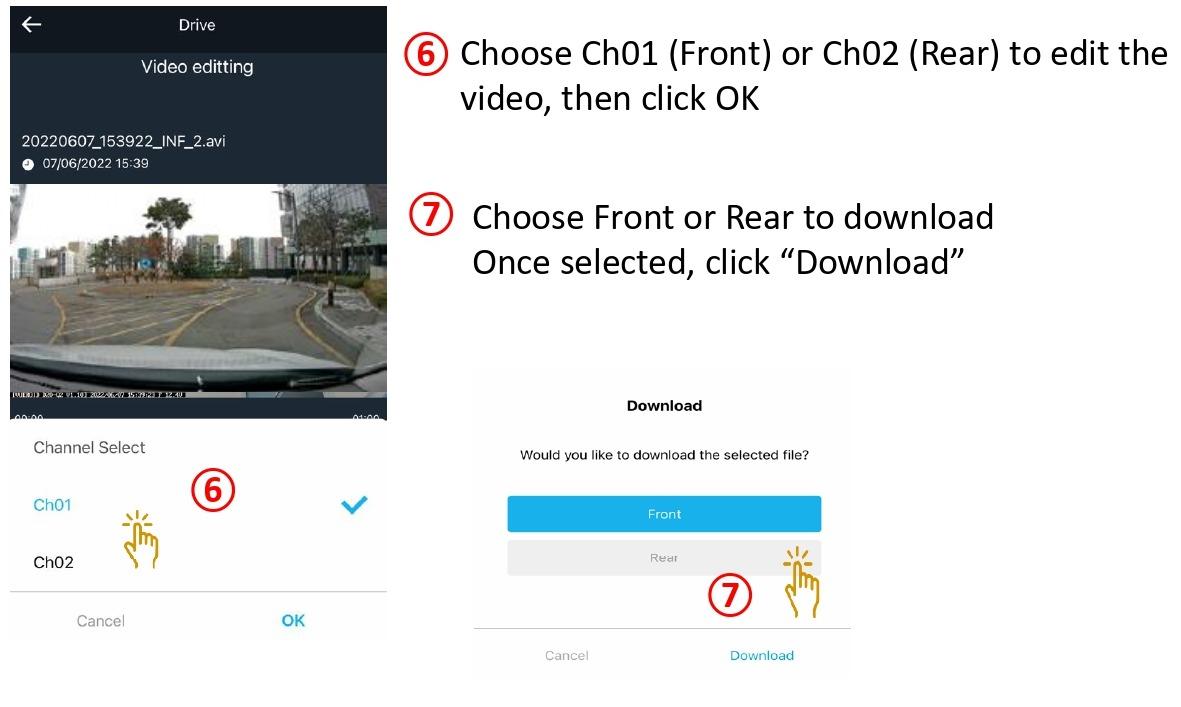

4.0  DOWNLOADING VIDEOS

---

---



---

---

---



---



---

---

---

---
