VUEROID WI-FI APPLICATION APPS





VUEROID APP INITIAL SETUP TUTORIAL







1.0  APP DOWNLOAD AND INSTALLING



1.1 App Store Download

1. Search for "Vueroid" and download the app.

2. For Android users, please download the app from "Google Play".

3. For IOS users, please download the app from "App Store"

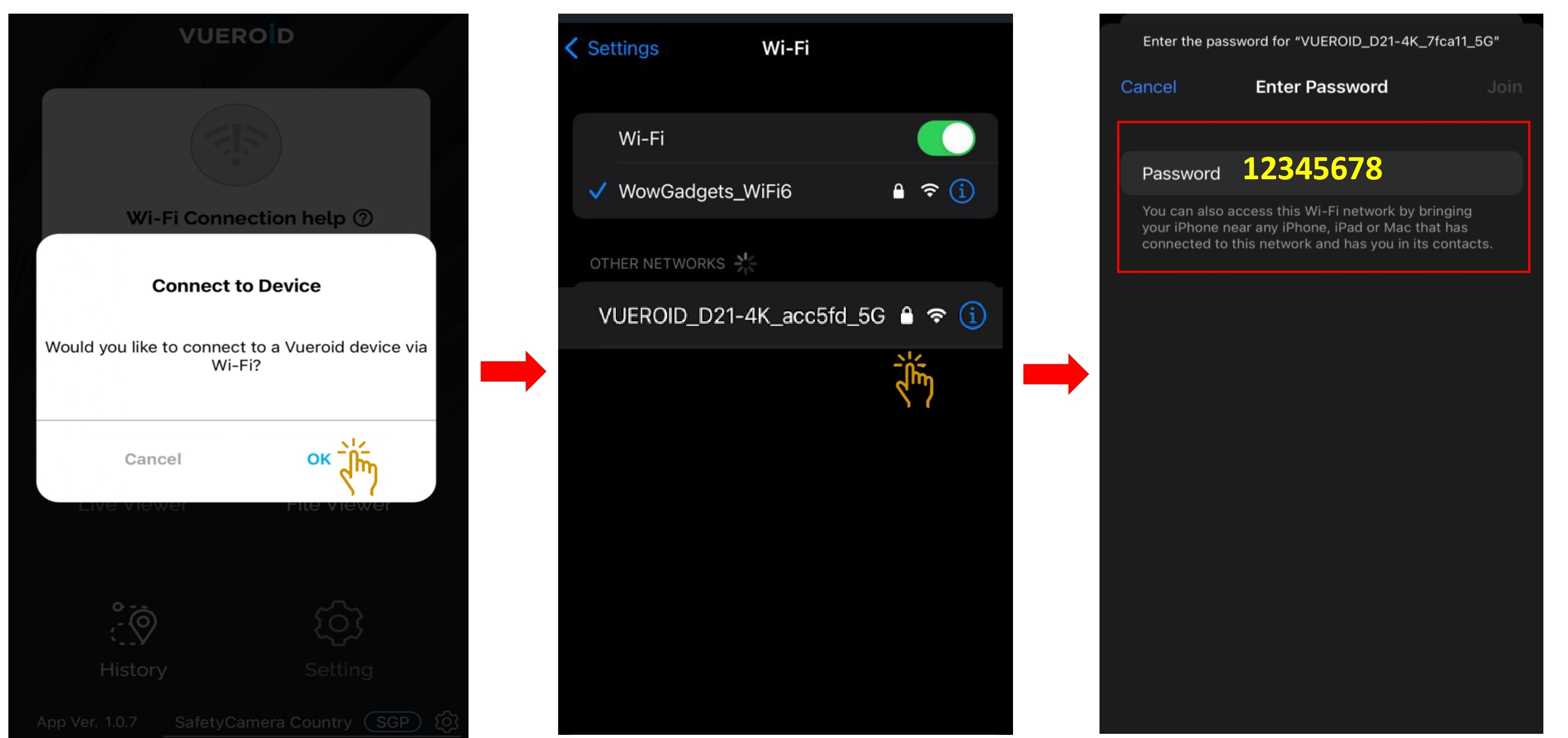

1.2 Wi-Fi Application Connection

1. Turn "ON" the Wi-Fi button on the dashcam.

2. Open Vueroid App.

3. Tap on "OK" once the pop-up screen is shown and it says "Connect to device".

4. In the Wi-Fi network listing, click on the VUEROID dashcam SSID in the form of "VUEROID_D21_ULTRA_XXXXXX"

5. Key in the password. Default password is "12345678"







1.3 Wi-Fi Application Start-up Screen



1. Wi-Fi Status     : Display Wi-Fi status and the name of the connected device.

2. Wi-Fi Connect  : Enable or Disable Wi-Fi connection.

3. Live Viewer      :  View the front / rear live stream and ADAS settings

4. File Viewer       : Find the recording files in different folders

5. History              : Find the trip data and travel routes by dates.

6. Setting               : Allow user to get unit’s settings switched.



2.0  SETTING



2.1 Live View



1.  Left/Right Reverse : Switch to Left / Right viewing image.

2.  Snapshot                 : Capture the display image.

3.  Full Screen              : Display the full screen

4.  CH (Front/Rear)     : Switch to Front / Rear camera image.

5.  ADAS Setting          : Initialize the ADAS calibration setting. Enable or disable following functions





2.2 Safety Camera Alert & Advanced Driver- Assistance System (ADAS)



2.2.1 Initial Setting

1. Safety Camera Alert - When the vehicle approaches or passes the speed limit zone, the safety camera alert system will collect GPS signals and safety camera data.

2. Click on "Setting" to choose the Safety Camera Country Setting.

2.2.2 Safety Camera Alert

1. Safety Camera Alert consist

• Safety Camera Alert
• Mobile Camera Zone Alert

Cyclops alert the driver of upcoming speed and red light cameras so it helps drivers reduce their speed and make journeys safer for everyone on the roads.

2.2.3 Advanced Driver Assistance System (ADAS)

1. Advanced Driver-Assistance System (ADAS) consists of

• Lane Departure Warning System (LDWS)



• Front Vehicle Start Alarm (FVSA)




• Forward Collision Warning System (FCWS)




• Rear Collision Warning System (RCWS)




• Pedestrian Detection Front/Rear (PD)

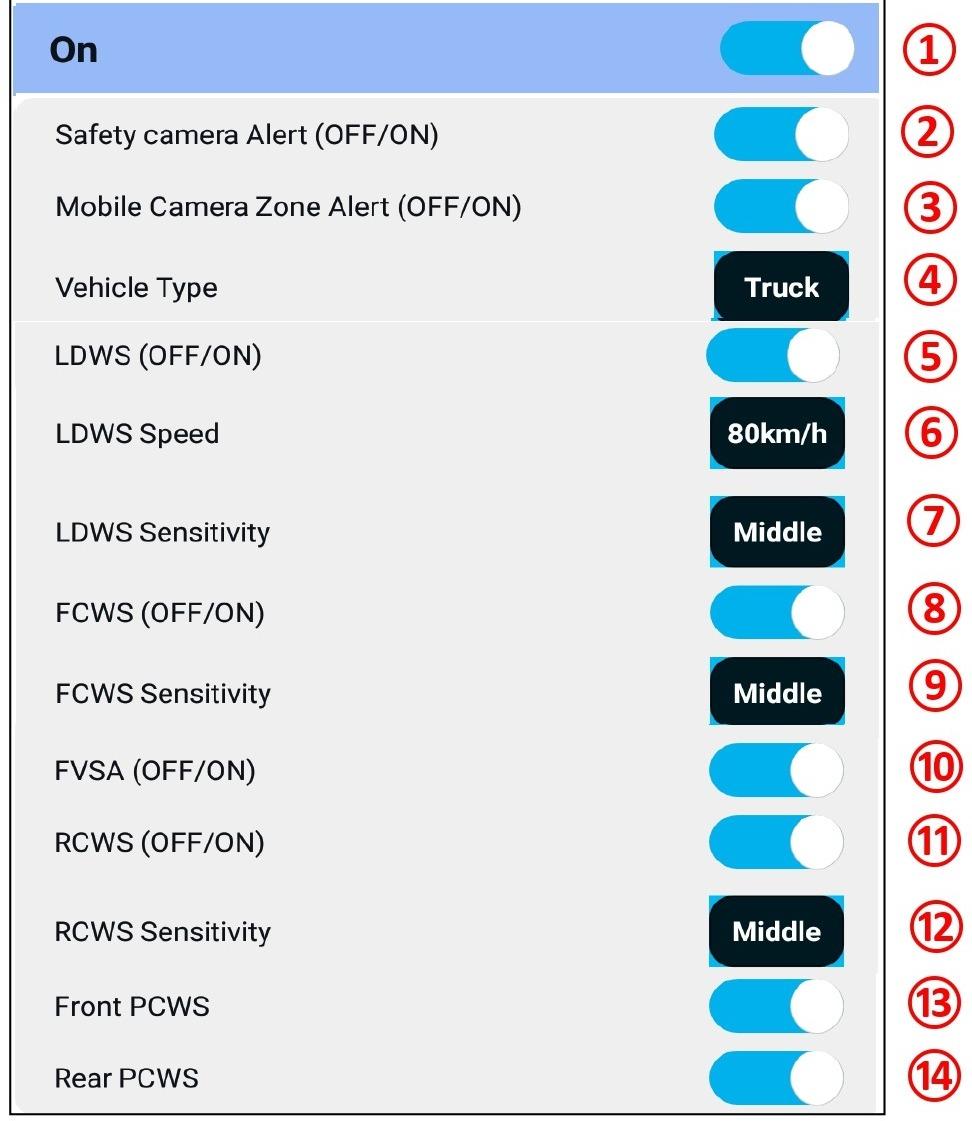

2.2.4 Setting



1. Safety Camera Alert and ADAS can be Enable or Disable by each function accordingly.

2. To enable or disable the safety camera alert, click on the Live View

3. Click on ADAS Setting.

4. Click on ADAS Setting Icon

5. To enable swipe to the right and to disable swipe to left accordingly to user preferences.

6. Once selected, click "OK"











2.2.5 Adjustment of ADAS Alignment

1. Adjustment of alignment of ADAS setting can be set by moving the ADAS grid line.

2. Go to Live Viewer then select ADAS setting to adjust the ADAS

2.2.5.1 Front View - ADAS Alignment



1. Select CH1 - Front View Liew Viewer



2. Touch and move the screen to align "Vehicle Center" and "Bonnet" line displayed on the ADAS setting screen.

3. Align the vertical green line "Vehicle Center" to the center of the vehicle within the recommended grid .

4. Align the horizon blue line "Bonnet" to the bonnet of the vehicle within the recommended grid .

5. Press  to save the setting.





2.2.5.2 Rear View - ADAS Alignment



1. Select CH2 - Rear View Liew Viewer

2. Touch and move the screen to align "Vehicle Center" and "Trunk" line displayed on the ADAS setting screen.

3. Align the vertical green line "Vehicle Center" to the center of the vehicle within the recommended grid .

4. Align the horizon blue line "Trunk" to the trunk of the vehicle within the recommended grid .

5. Press  to save the setting.







2.3 Vueroid Dashcam Setting



To change the dashcam setting , click on "Setting" icon.



2.3.1 Recording

2.3.1.1 Image Quality

1. Choose the type of "Image Quality" to be set .


2. Select "HIGH" or "MID" or "LOW"


3. Click "OK" once selected.


4. Once saved, the dashcam will restart itself.





2.3.1.2 Voltage Cut-Off

Voltage Cut-Off allows user to choose a few pre set voltage cut off options.

The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.

1. Click on "Voltage Cut-Off" to be set.


2. Select the voltage value to be set.


3. Click "OK" once selected.



2.3.1.3 Voltage Cut-Off Time

Voltage Cut-Off Time allows user to choose a few pre set timer cut off options or disable the timer cut off.

The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.

1. Click on "Voltage Cut-Off Time" to be set.


2. Select the cut time to be set.


3. Click "OK" once selected.





2.3.1.4 Parking Record Auto

To enable or disable parking mode recording

Parking mode recording only able to activate if the dashcam power supply cable is hard wired.

1. Click on "Parking Record Auto" to be set .


2. Select "ON" or "OFF".


3. Click "OK" once selected.







2.3.1.5 Parking Record

During the parking mode recording, user can choose either based on time lapse recording or recording after motion detected.

1. Click on "Parking Record" to be set .


2. Select "Time Lapse" or "Motion".


3. Click "OK" once selected.





2.3.1.6 Parking Mode Event Alert

Parking mode event alert will notify the user if there is any event recorded during parking mode once the dashcam is changed from parking mode to normal mode.

1. Click on "Parking Mode Event Alert" to be set .

2. Select "ON" or "OFF".


3. Click "OK" once selected.







2.3.1.7 Parking Record FPS

If  2.3.1.11 Parking Mode is selected to either "Normal" or "HDR", the parking record resolution FPS (frame per second) can be set to "Low" or "Mid" or "High".

2.3.1.8 Driving Record

During the driving mode recording, user can choose either based on time lapse recording or normal recording.

1. Click on "Driving Record" to be set .


2. Select "Time Lapse" or "Normal".


3. Click "OK" once selected.


4. Once saved, the dashcam will restart itself.





2.3.1.9 Low Power Mode



Low Power Mode enhances the dashcam energy saving in parking mode.

Once the Low Power Mode function is activated, the dashcam will consume very low power while on standby and only will start to record upon an impact.

This will help to converse the power especially when you will be away from your car for a longer period of time.

1. Click on "Low Power Mode" to be set .


2. Select "ON" or "OFF".


3. Click "OK" once selected.









2.3.1.10 Driving Mode



During driving recording, the recording can be set as follows

• "Normal" is just a normal recording without any enhancement features to the recorded videos.


• "High Dynamic Range (HDR)" improves the contrast in a video while maintaining clarity in high contrast or low-light conditions. This means the whole scene looks more like how your eyes see it.


• "Ultra License Plate Capture" is the NEW feature that license plate information can be obtained more accurately even in low-light environments.

1. Click on "Driving Mode" to be set .


2. Select "Normal", "HDR" or "Ultra LP Capture".


3. Click "OK" once selected.


4. Once saved, the dashcam will restart itself.





2.3.1.11 Parking Mode

During parking recording, the recording can be set as follows

• "Normal" is just a normal recording without any enhancement features to the recorded videos.


• "High Dynamic Range (HDR)" improves the contrast in a video while maintaining clarity in high contrast or low-light conditions. This means the whole scene looks more like how your eyes see it.


• "Ultra Night Vision" is to improve the clarity of recordings even in low-light environments.

1. Click on "Parking Mode" to be set .


2. Select "Normal", "HDR" or "Ultra Night Vision".


3. Click "OK" once selected.






2.3.1.12 Rear Record In Parking

This function allows user to choose the Rear camera whether to record or not during parking mode.

1. Click on "Rear Record In Parking" to be set .


2. Select "ON" or "OFF"


3. Click "OK" once selected.





2.3.2 Event

2.3.2.1 Sensitivity - Driving Impact, Parking Impact, Front Motion and Rear Motion

Settings for impact and motion event sensitivity while driving and parking.

• Driving Impact Sensitivity
• Parking Impact Sensitivity
• Front Motion Sensitivity
• Rear  Motion Sensitivity

1. Click on type of Event to be set .


2. Select "Off", "Low", "Mid" or "High"


3. Click "OK" once selected.





2.3.3 Sound

2.3.3.1 Voice Recording

Voice recording can be set to turn on or off in the recorded videos.

• Off                   - No voice recording at all.
• On                   - Continuous voice recording.
• Event Only     - Only voice recorded for the event recorded files.
• Event + Park  - Voice recorded for event recorded files and during parking mode.



1. Click on "Voice Recording" to be set .


2. Select "Off", "On", "Event Only" or "Event Park"


3. Click "OK" once selected.





2.3.3.2 Speaker Volume

Speaker Volume   - Speaker volume can be adjusted accordingly or to be turn on or turn off.







2.3.3.3 Event Notification

Event Notification  - Event Notification sounds can be turn "On" or "Off".





2.3.4 Time

2.3.4.1 Standard Time, Daylight Saving Time and Time Setting



The following time function can be set accordingly

• Standard Time               -  Time setting can be set manually or choose the correct region time zone GMT.

• Daylight Saving Time    -   Not applicable to Singapore Region. Default setting is "OFF"

• Time Setting                   -  Manual time setting





2.3.5 Memory

2.3.5.1 Memory Allocation

Memory Assign - This function allows user to choose to prioritize the recorded videos in the memory card allocation.







2.3.5.2 SD Card Format



User can use the apps to format the SD card.





2.3.6 System

2.3.6.1 Security LED and Rear Security LED



For the Security LED   and Rear Security LED can be set to turn "ON or "OFF"





2.3.6.2 Speed and Driving Speed Recording

Speed               -   To set vehicle speed limit unit if the "Speed Mode" is turn on. It can be set to  "Km/h" or "m/h".

Speed Mode   -  To turn "On" or "Off" whether to capture the driving speed limit in the recorded videos.





2.3.6.3 Wi-Fi Auto On and Wi-Fi Bandwidth.



Wi-Fi Auto On     - To set the Wi-Fi function to auto "On" or "Off" when the dashcam is powered up.



Wi-Fi Bandwidth - To choose "5GHz" or "2.4GHz" Wi-Fi bandwidth.

                               5GHz  band provide 4 times faster Wi-Fi data transfer, ensuring smooth video previewing, downloading, and sharing.

                               Furthermore, support a 2.4GHz band so select and use one of the band depending on the environment you are using.

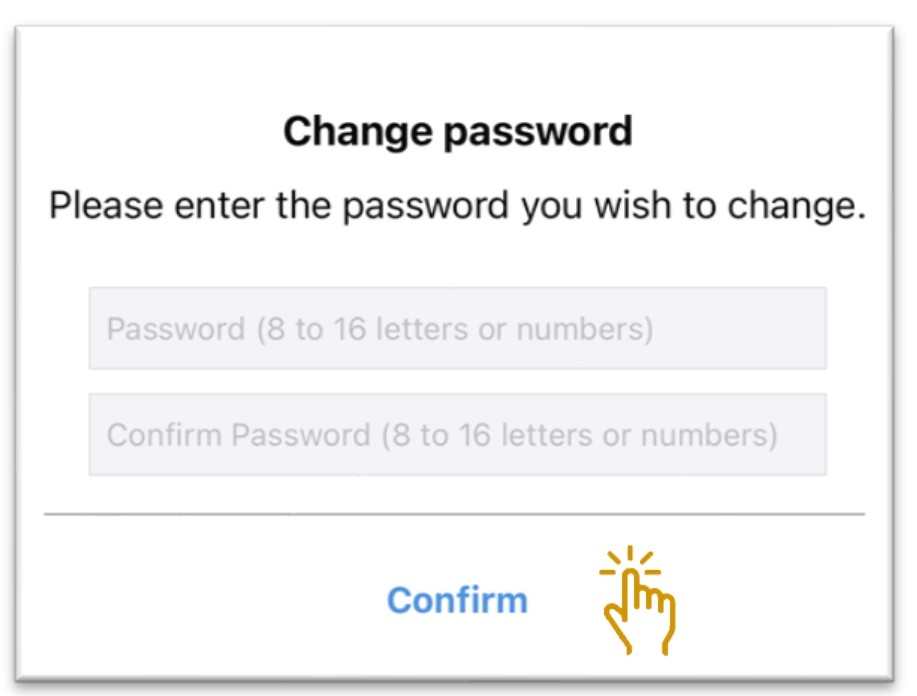

2.3.6.4 Rename Wi-Fi AP and Change Password



Wi-Fi AP                       -  Allow user to change the Wi-Fi AP name

Change Password      -  Password can be change with 8-16 alphabet or digits. Default Password: "12345678"





2.3.6.5 Firmware Upgrade, System Information, Reset



Firmware Upgrade         -  Any latest firmware will be notified and can be update.

System Information       -  Dashcam model and firmware version will be shown in the information.

Reset                                -  To reboot the dashcam back to factory default setting.





3.0  VIEW THE RECORDING (FILE VIEWER)













4.0  DOWNLOADING VIDEOS

---

---



---

---

---



---



---

---

---

---



5.0  HISTORY



Yours Itineraries can be safely stored in the History Menu so that you can access all your previous car rides.
Plus, Travel-log drive will help drivers or fleet managers to find a vehicle’s current Location using the VUEROID Mobile app.

Captured by the VUEROID Built-in antenna, the vehicle’s location, speed, and direction of travel is shown in the mobile app on a Google maps display.

It logs every trip you take and reports like mileage and trip time, as well as any impact events that might have occurred on the road.
