Vueroid D20_Q2 _WiFi Application Manual

32 October 6, 2023  D20-Q2, VUEROID Dashcams, Wi-Fi Application Manual

VUEROID WI-FI APPLICATION APPS



Table of Contents



VUEROID APP INITIAL SETUP TUTORIAL







1.0  APP DOWNLOAD AND INSTALLING



1.1 App Store Download

  1. Search for "Vueroid" and download the app.

  2. For Android users, please download the app from "Google Play".

  3. For IOS users, please download the app from "App Store"

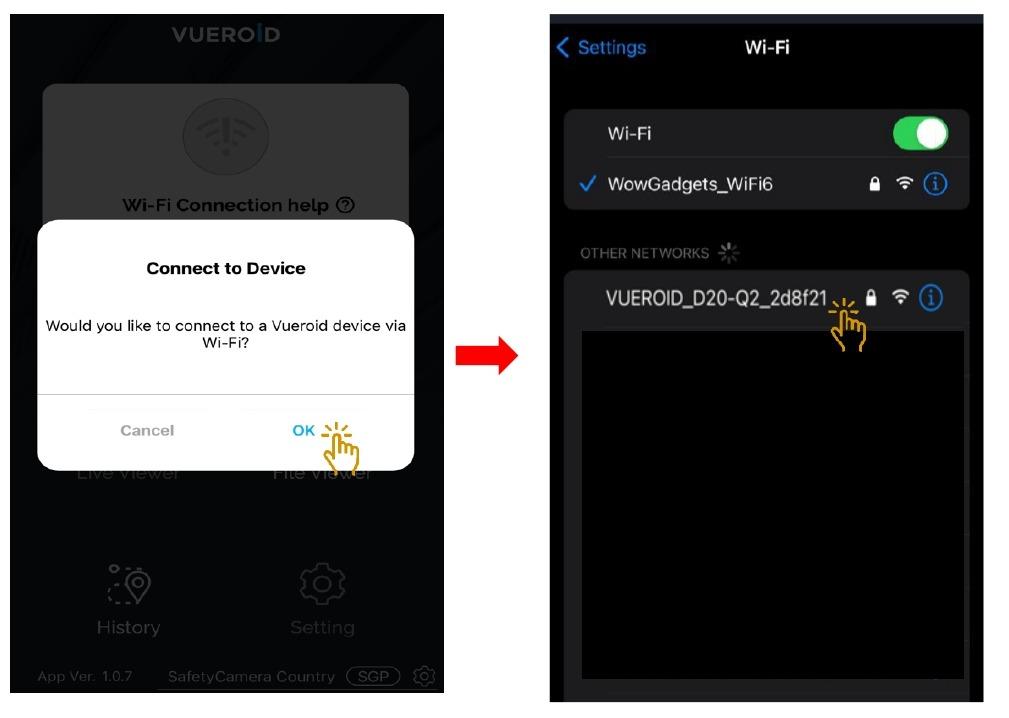

1.2 Wi-Fi Application Connection

  1. Turn "ON" the Wi-Fi button on the dashcam.

  2. Open Vueroid App.

  3. Tap on "OK" once the pop-up screen is shown and it says "Connect to device".

  4. In the Wi-Fi network listing, click on the VUEROID dashcam SSID in the form of "VUEROID_D20_Q2_XXXXXX"

  5. Key in the password. Default password is "12345678"

Information

In the event unable to connect to Wi-Fi Apps, please turn off mobile data plan network or switch on airplane mode.

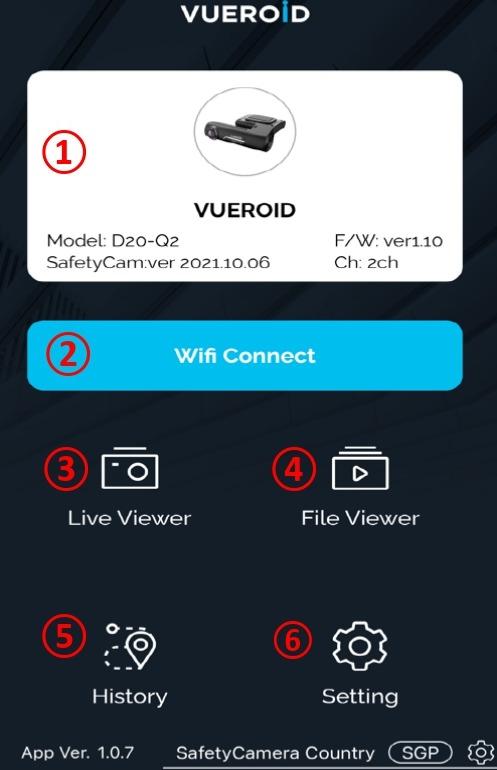

1.3 Wi-Fi Application Start-up Screen



  1. Wi-Fi Status     : Display Wi-Fi status and the name of the connected device.

  2. Wi-Fi Connect  : Enable or Disable Wi-Fi connection.

  3. Live Viewer      :  View the front / rear live stream

  4. File Viewer       : Find the recording files in different folders

  5. History              : Find the trip data and travel routes by dates.

  6. Setting               : Allow user to get unit's settings switched.



2.0  SETTING

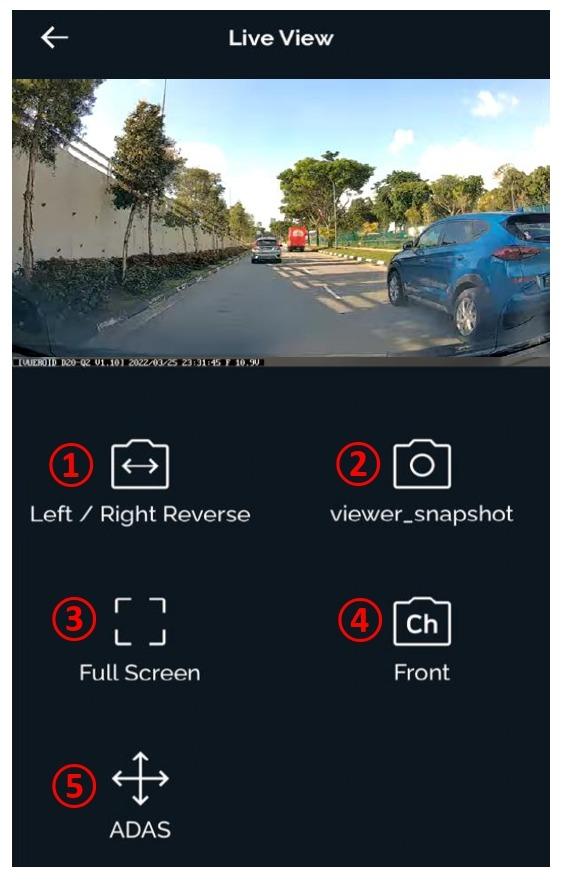

2.1 Live Viewer



1.  Left/Right Reverse : Switch to Left / Right viewing image.

2.  Snapshot                 : Capture the display image.

3.  Full Screen              : Display the full screen

4.  CH (Front/Rear)     : Switch to Front / Rear camera image.

5.  ADAS                       : Initialize the ADAS calibration setting. Enable or disable following functions

                                         Lane Departure Warning System (LDWS)
                                        Front Vehicle Start Alarm (FVSA)
                                        Forward Collision Warning System (FCWS)
                                        Rear Collision Warning (RCW)
                                        Safety Camera Alert





2.2 Safety Camera Alert



2.2.1 Safety Camera Setting



Safety Camera Firmware

Dashcam units that purchased in Singapore are pre-loaded Singapore Safety Camera Alerts Firmware.

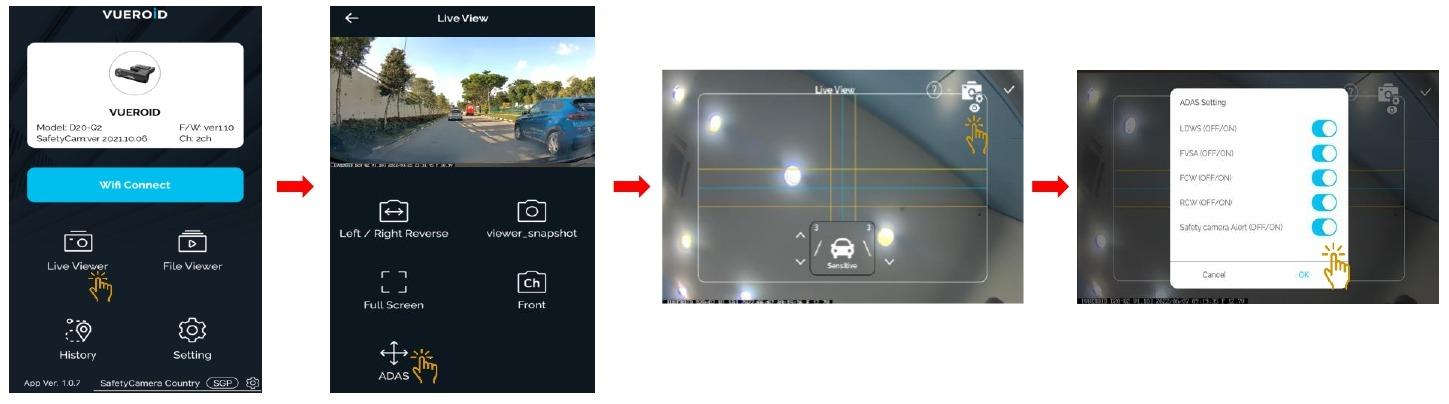

1. Safety Camera Alert - When the vehicle approaches or passes the speed limit zone, the safety camera alert system will collect GPS signals and safety camera data.

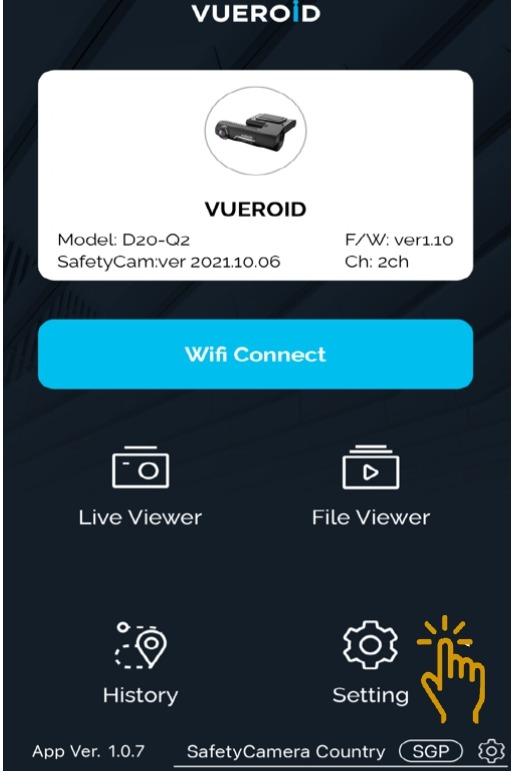

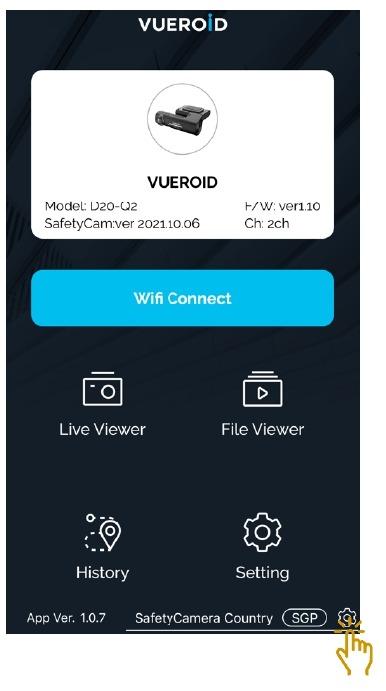

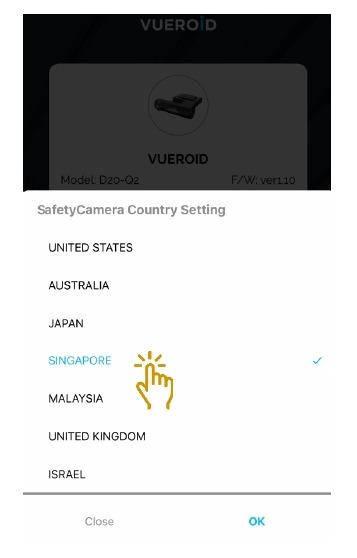

2. Click on "Setting" to choose the Safety Camera Country Setting.



3. To enable or disable the safety camera alert, click on the Live Viewer

4. Click on "ADAS".

5. Click on Dashcam Setting Icon.

6. To "Enable" swipe to the "Right" and to "Disable" swipe to "Left".

7. Once selected, click "OK"

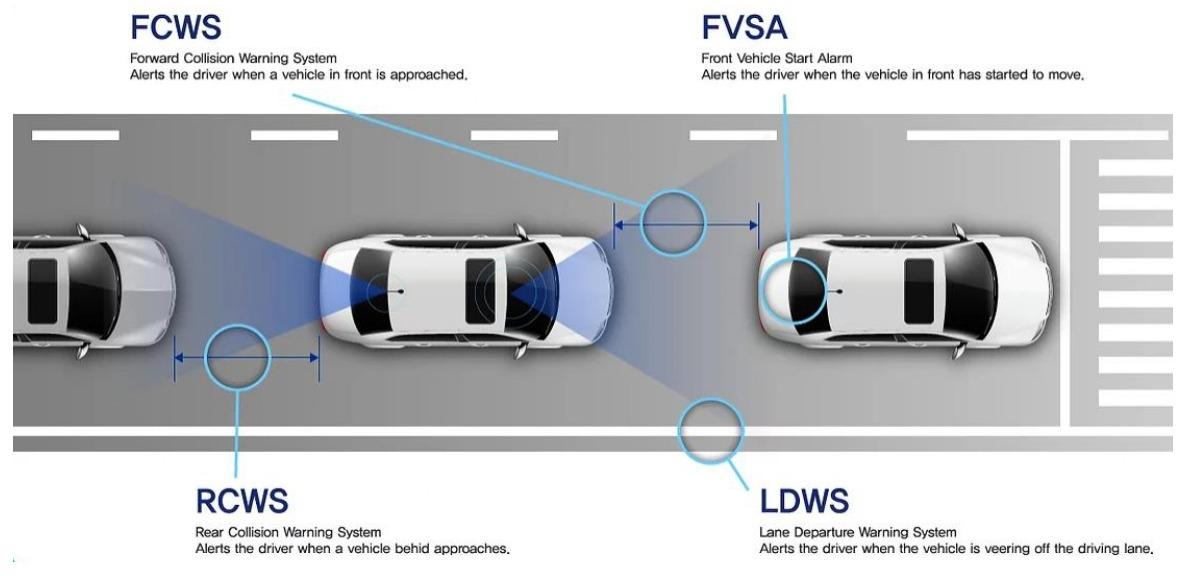

2.3 Advanced Driver- Assistance System (ADAS)



2.3.1 Setting





1. Advanced Driver-Assistance System (ADAS) consists of

  • Lane Departure Warning System (LDWS)
  • Front Vehicle Start Alarm (FVSA)
  • Forward Collision Warning System (FCWS)
  • Rear Collision Warning (RCW)

2. ADAS can be Enable or Disable by each function accordingly.

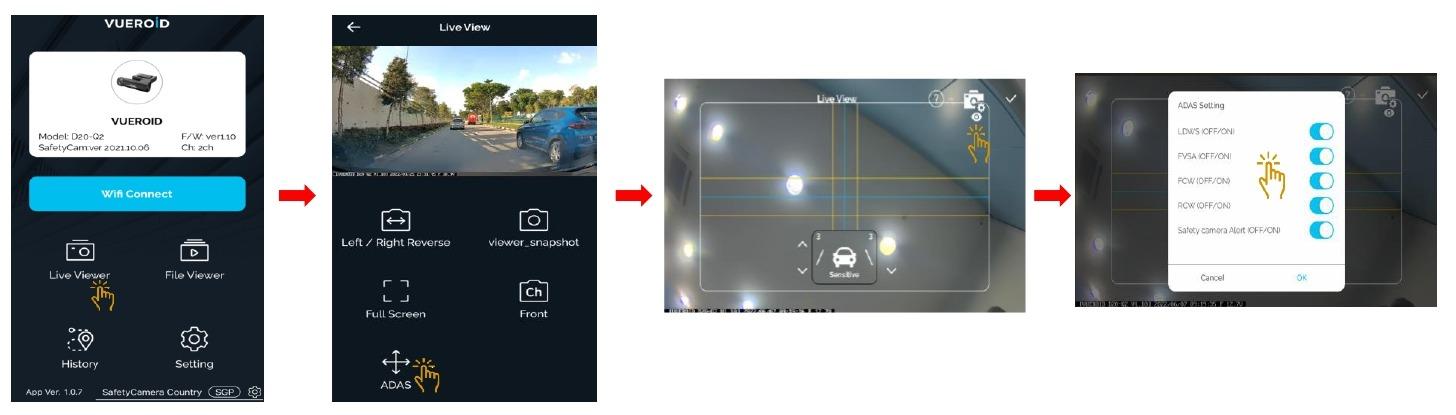

3. To "Enable" or "Disable"the ADAS, click on the Live Viewer

4. Click on "ADAS".

5. Click on Dashcam Setting Icon

6. To "Enable" swipe to the "Right" and to "Disable" swipe to "Left" accordingly to user preferences.

7. Once selected, click "OK"

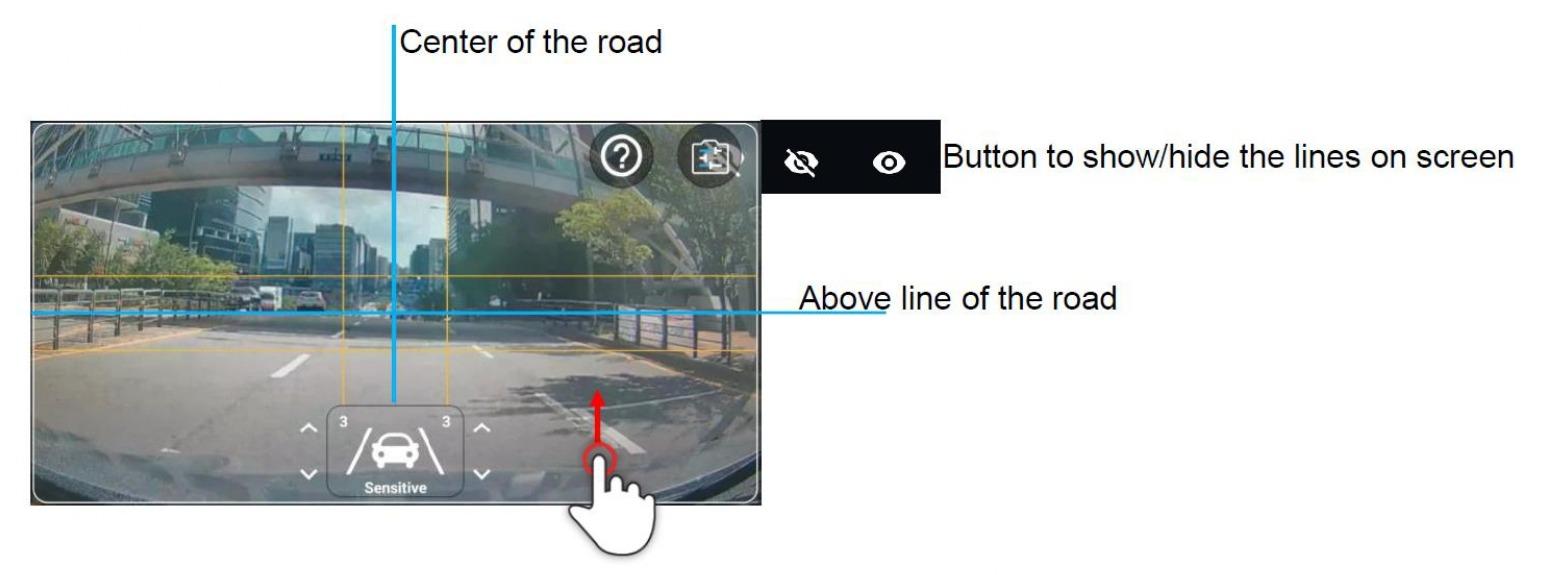

2.3.2 Adjustment of ADAS Alignment



1. Adjustment of alignment of ADAS setting can be set by moving the ADAS grid line.

2. Go to Live Viewer then select ADAS setting to adjust the ADAS

3. Select CH1 - Front View Liew Viewer



4. Touch and move the screen to align the blue line displayed on the ADAS setting screen.

5. Align the vertical blue line to the center of the road.

6. Align the center of the road inside the vertical yellow lines.

7. Align the horizon blue line to the above line of the road.

8. Align the above of the road inside the vertical yellow lines.

9. Press  to save the setting.



10. Select CH2 - Rear View Liew Viewer



11. Select "Yes" or "No" whether you can see the trunk of your vehicle on the ADAS setting screen.

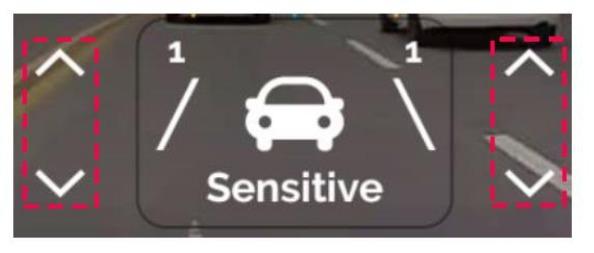

2.3.3  ADAS Sensor Sensitivity

  1. Press Up/Down to set the warning sensitivity level from 1 to 5.

  2. Higher the number represents higher sensitivity.



2.4 Vueroid Dashcam Setting - Recording



To change the dashcam setting , click on "Setting" icon.



2.4.1 Recording - Image Quality

  1. Choose the type of "Image Quality" to be set.

  2. Select "HIGH" or "MID" or "LOW".

  3. Click "OK" once selected.

  4. Once saved, the dashcam will restart itself.



2.4.2 Recording - Power Saver


Power saver allows user to choose a few pre set voltage cut off options.

The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.

  1. Click on "Power Saver" to be set.

  2. Select the voltage value to be set.

  3. Click "OK" once selected.

2.4.3 Recording - Voltage Cut Time


Power saver allows user to choose a few pre set timer cut off options or disable the timer cut off.

The dashcam will stop recording once detected low voltage or voltage cut time (whichever comes first) during the parking mode recording.

  1. Click on "Voltage Cut Time" to be set.

  2. Select the cut time to be set.

  3. Click "OK" once selected.



2.4.4 Recording - Automatic Parking


To enable or disable parking mode recording

Parking mode recording only able to activate if the dashcam power supply cable is hard wired.

There is no parking mode is using 12V power cigarette connection.

  1. Click on "Automatic Parking" to be set.

  2. Select "ON" or "OFF".

  3. Click "OK" once selected.



2.4.5 Recording - Parking Record



During the parking mode recording, user can choose either based on time lapse recording or recording after motion detected.

  1. Click on "Parking Record" to be set.

  2. Select "Time Lapse" or "Motion".

  3. Click "OK" once selected.

Parking Mode

Time Lapse - 7 seconds per video file. Each video file contains 100 seconds recorded video.

Motion - 30 seconds per video file.

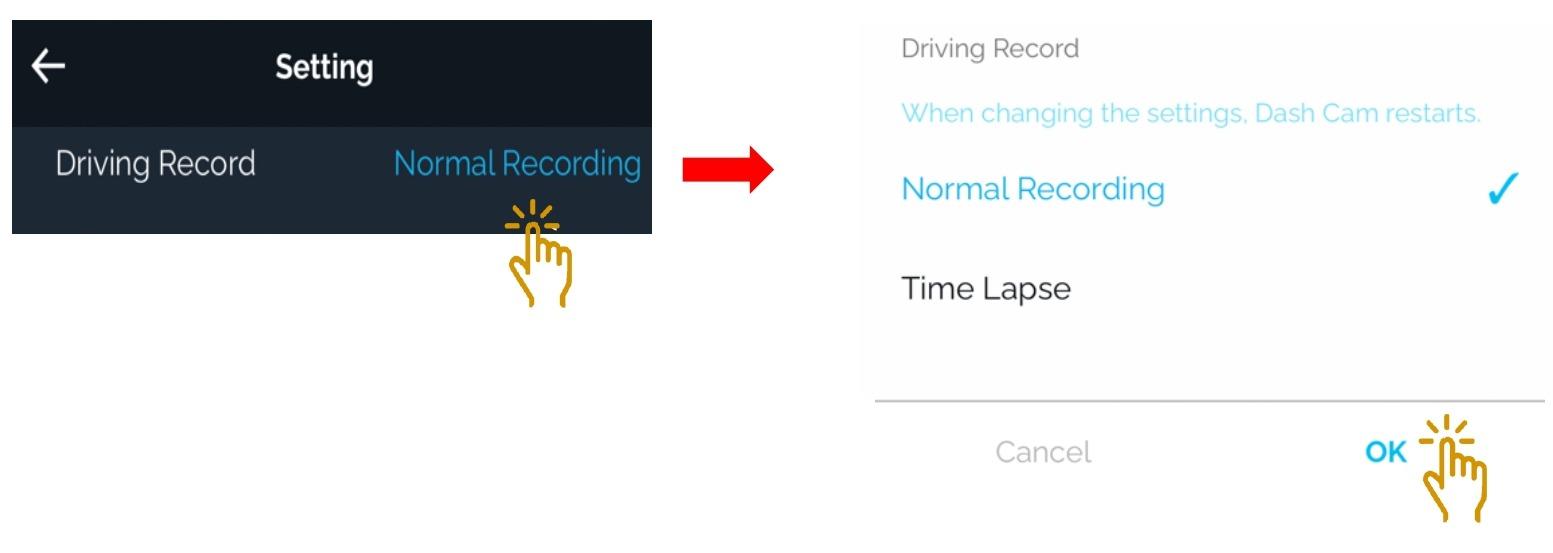

2.4.6 Recording - Driving Record



During the driving mode recording, user can choose either based on time lapse recording or normal recording.

  1. Click on "Driving Record" to be set.

  2. Select "Time Lapse" or "Normal".
  3. Click "OK" once selected.

  4. Once saved, the dashcam will restart itself.

Warning

Once the Driving Record setting is switch to either one setting Normal Recording or Time Lapse Recording, the dashcam itself will auto format the SD card.
Please ensure to save out any important videos/files before to change this setting
Default setting: Normal Recording

Driving Record

Normal Recording - 1 minute per video file.

Time Lapse - 20 seconds per video file. Each video file contains 5 minutes of recorded video.



2.4.7 Recording - HDR



High Dynamic Range (HDR) improves the contrast in a video while maintaining clarity in high contrast or low-light conditions. This means the whole scene looks more like how your eyes see it.

  1. Click on "HDR" to be set.

  2. Select "ON" or "OFF".

  3. Click "OK" once selected.

  4. Once saved, the dashcam will restart itself.



2.4.8 Recording - Parking Record with Rear



This function allows user to choose the Rear camera whether to record or not during parking mode.

  1. Click on "Parking Record With Rear" to be set.

  2. Select "ON" or "OFF".

  3. Click "OK" once selected.



2.5 Vueroid Dashcam Setting - Event


Settings for impact and motion event sensitivity while driving and parking.

  1. Driving Impact Sensitivity

  2. Parking Impact Sensitivity

  3. Front Camera Motion Sensitivity

  4. Rear Camera Motion Sensitivity





2.6 Vueroid Dashcam Setting - Sound

  1. Voice recording    -  It can be turn on or turn off

  2. Speaker Volume   - Speaker volume can be adjusted accordingly or to be turn on or turn off.

  3. Event Alert            - Notification event alert can be turn on or turn off when there is an impact detected.

  4. Click "OK" once selected.

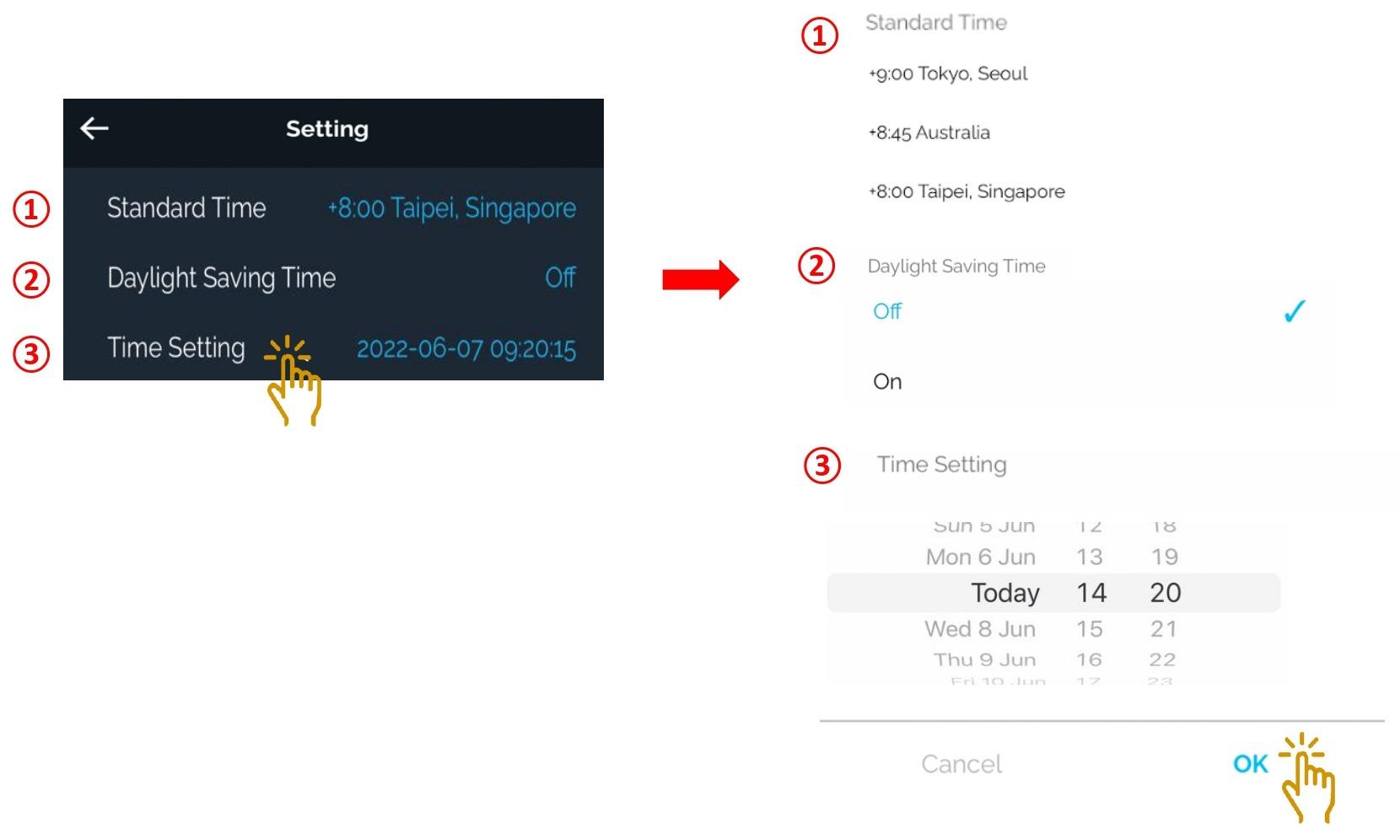

2.7 Vueroid Dashcam Setting - Time



  1. Standard Time               -  Time setting can be set manually or choose the correct region time zone GMT.

  2. Daylight Saving Time    -   Not applicable to Singapore Region. Default setting is "OFF"

  3. Time Setting                   -  Manual time setting

  4. Click "OK" once selected.



2.8 Vueroid Dashcam Setting - Memory



1. Memory Assign   - This function allows user to choose to prioritize the recorded videos in the memory card allocation.

MEMORY ASSIGN

Memory SD Card Capacity (32GB, 64GB, 128GB, 256GB)
Driving Memory Allocation Parking Memory Allocation Event Memory Allocation
Driving First  60% 20% 20%
Parking First 30% 50% 20%
Event First 30% 20% 50%
Driving Only 80% 0% 20%



2. SD Card Format  - To format the SD Memory card.

WARNING

Please note that once formatted, all the videos inside the SD card will be erased.

3. Once saved, the dashcam will restart itself.

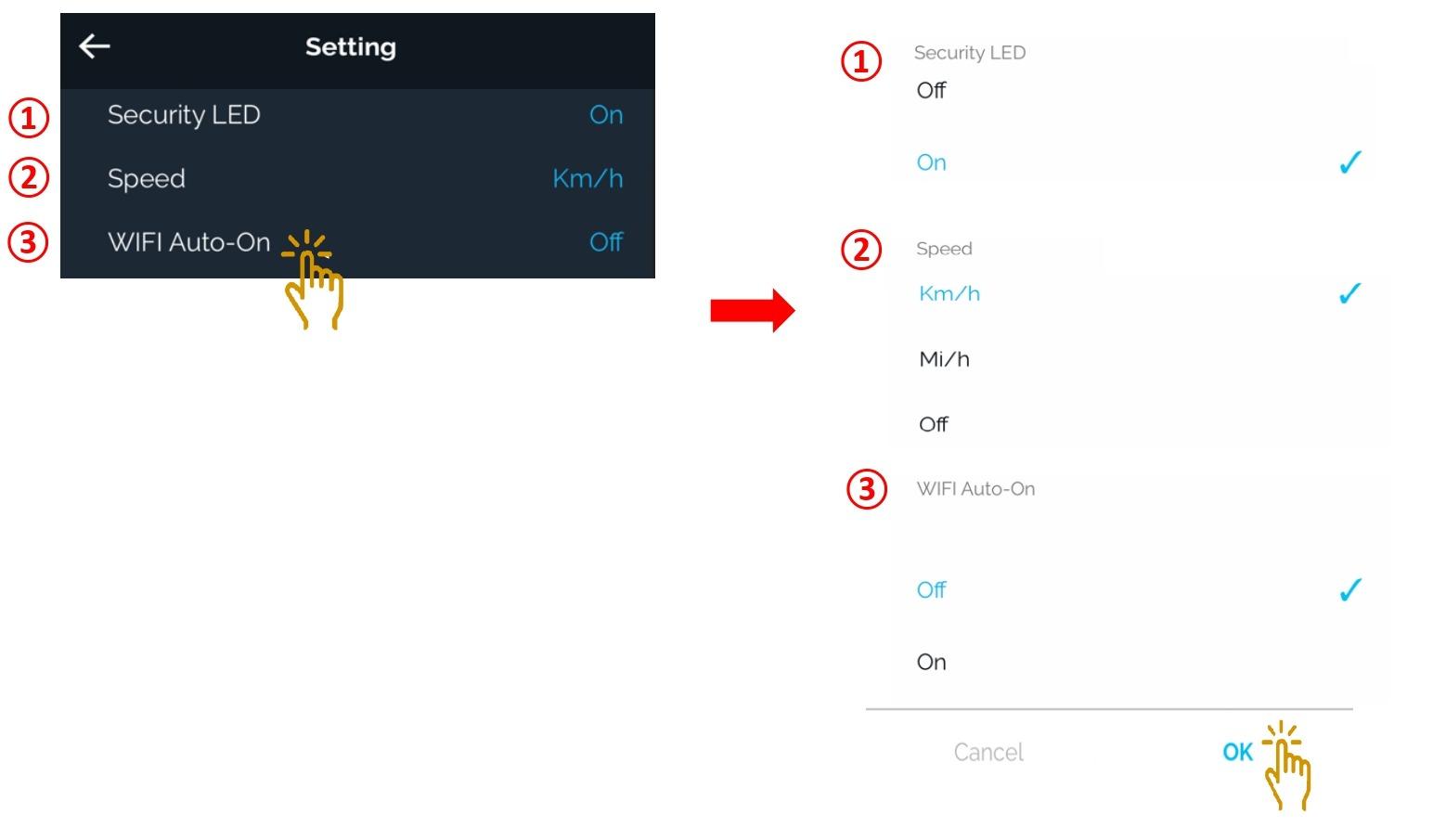

2.9 Vueroid Dashcam Setting - System

  1. Security LED    -   It can be set to turn "ON or "OFF"

  2. Speed               -   To capture the vehicle speed limit. It can be set to turn on "Km/h" , "Mi/h" or turn it "OFF"

  3. WI-FI Auto-On   -  Once the Wi-Fi is set to Auto ON, whenever the dashcam starts, the Wi-Fi will be set to turn on.

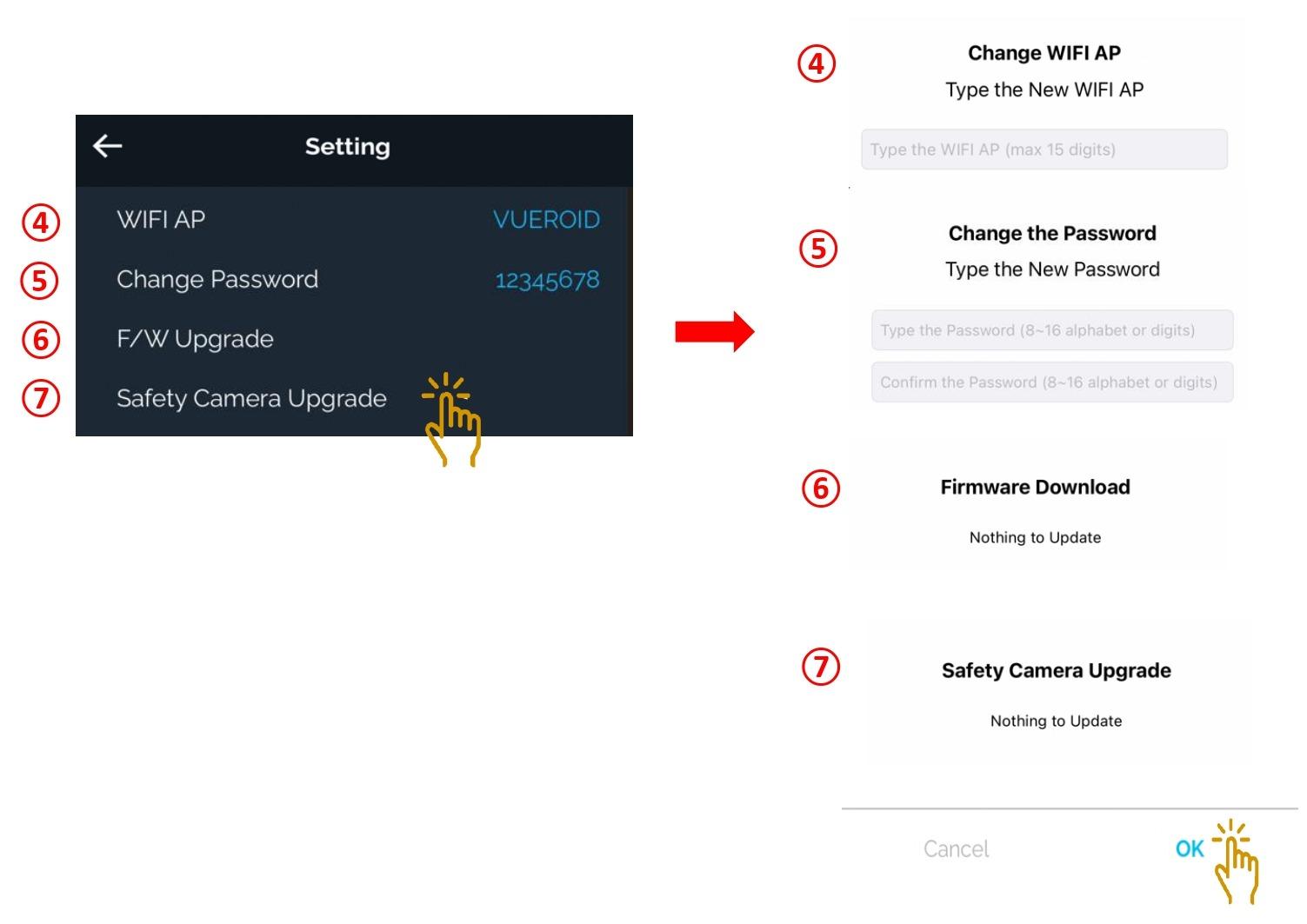

  4. WI-FI AP           - In the Wi-Fi network listing, click on the VUEROID dashcam SSID in the form of "VUEROID_D20_Q2_XXXXXX". Allow user to change the SSID naming.

  5. Change Password              - Password can be change with 8-16 alphabet or digits. Default password is "12345678".

  6. F/W Upgrade                     -  Any latest firmware will be notified and can be update.

  7. Safety Camera Upgrade  -  Any latest safety firmware will be notified and can be update.

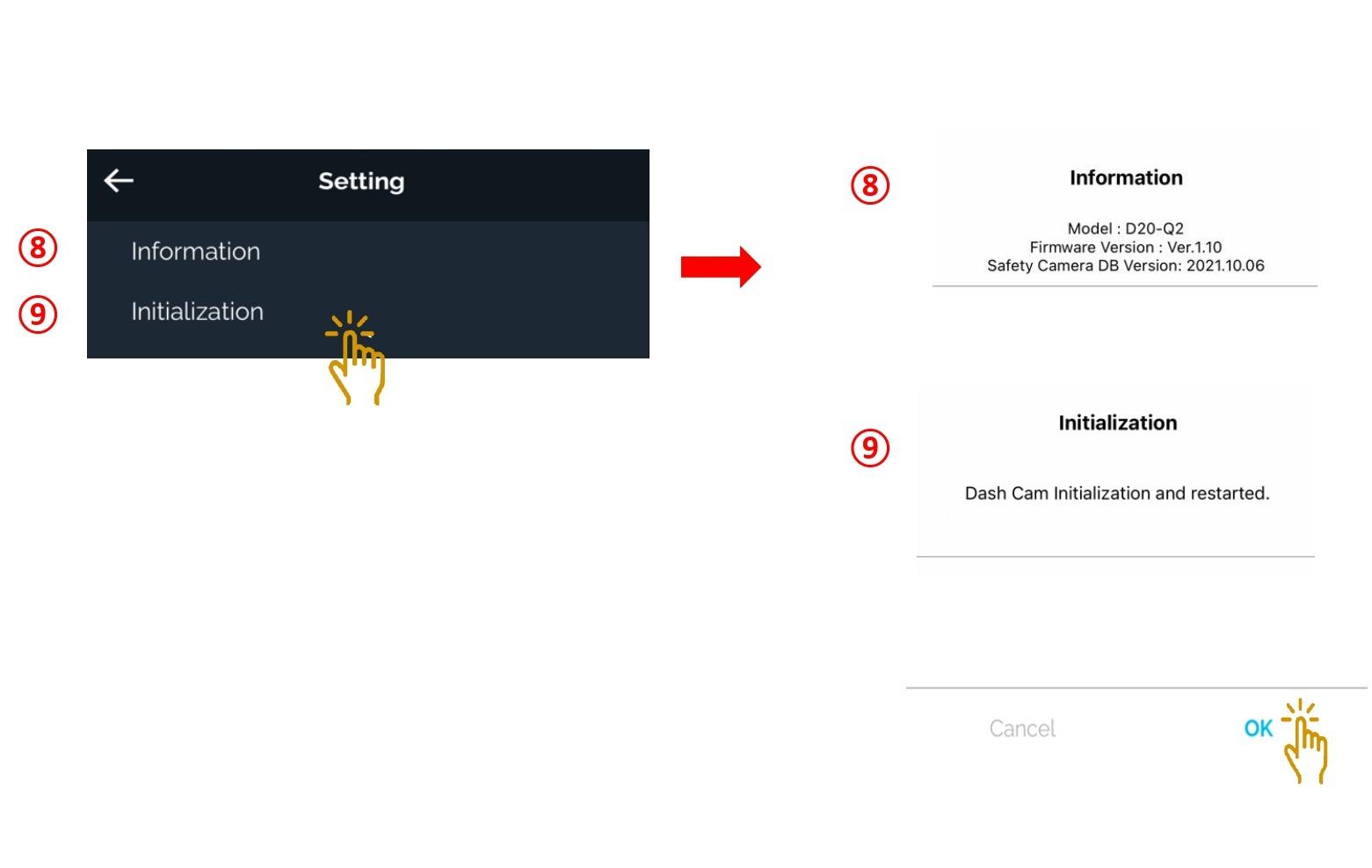

  8. Information  - Dashcam model and firmware version will be shown in the information.

  9. Initialization  - To reboot the dashcam back to factory default setting.

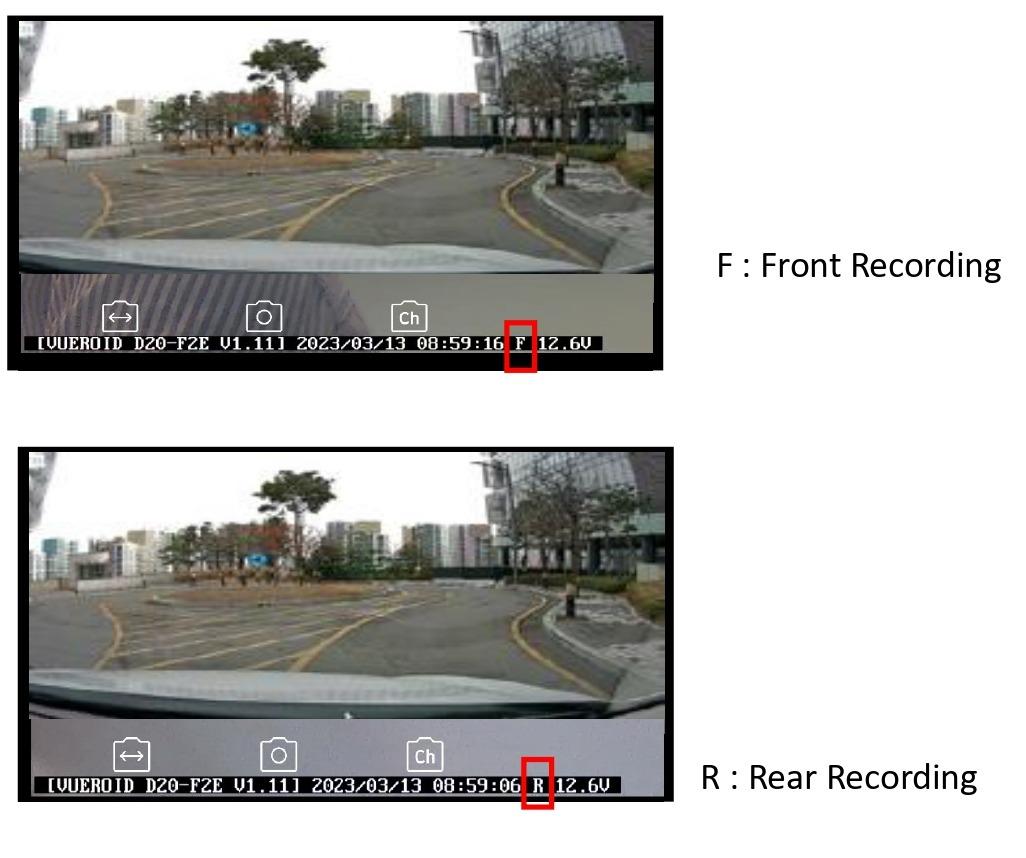

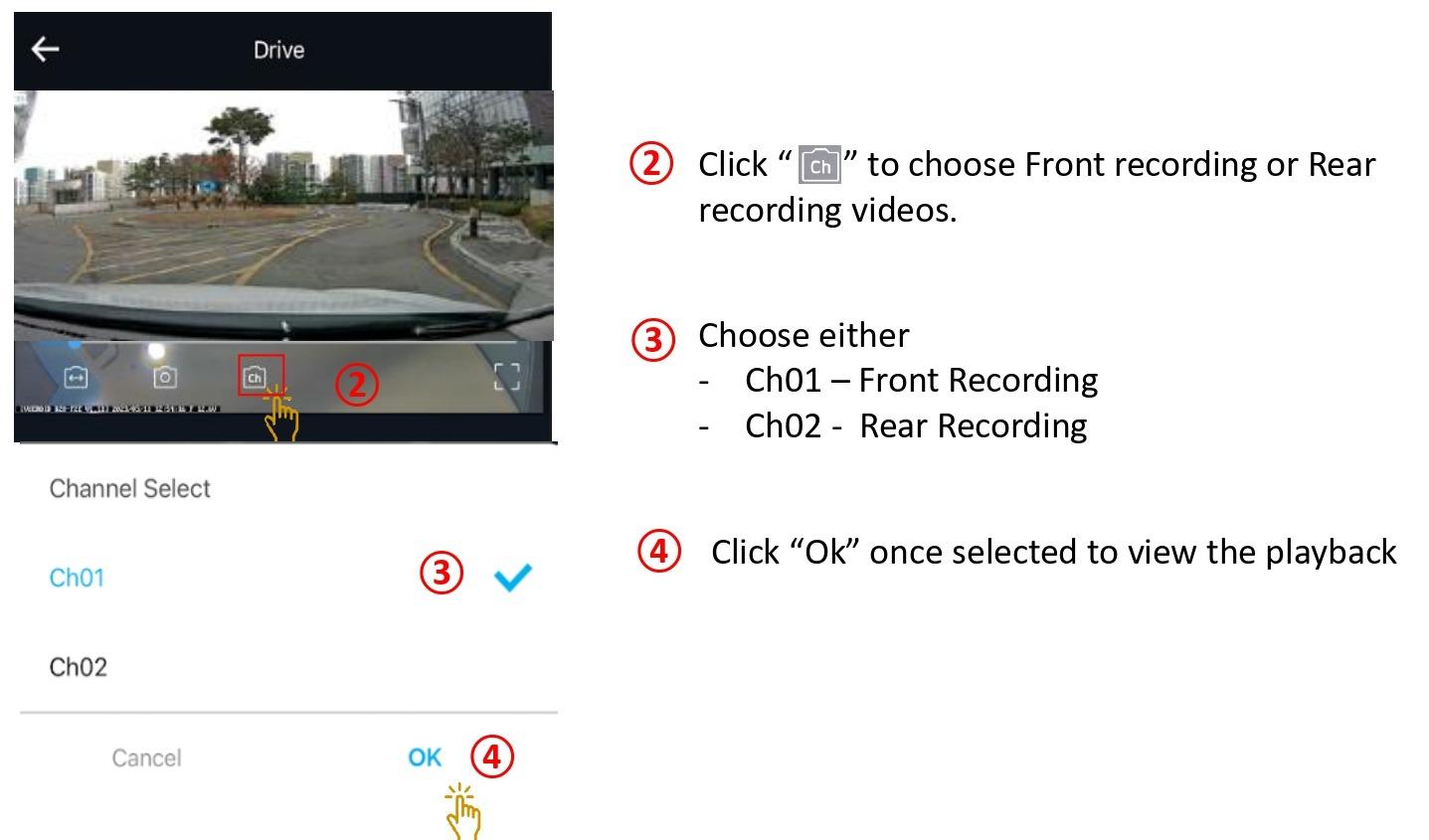

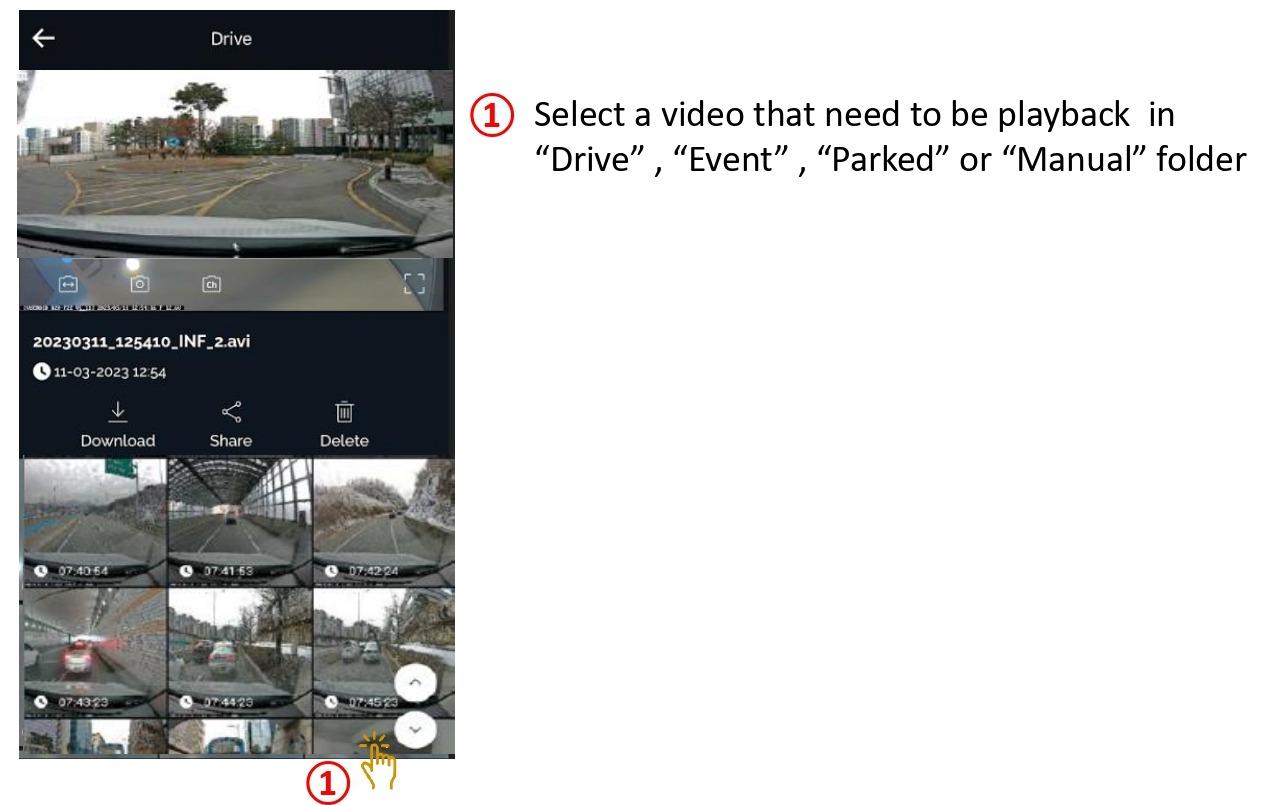

3.0  VIEW THE RECORDING (FILE VIEWER)













4.0  DOWNLOADING VIDEOS







Information

To save the downloaded videos to the user own phone library or to share, please continue to STEP 10

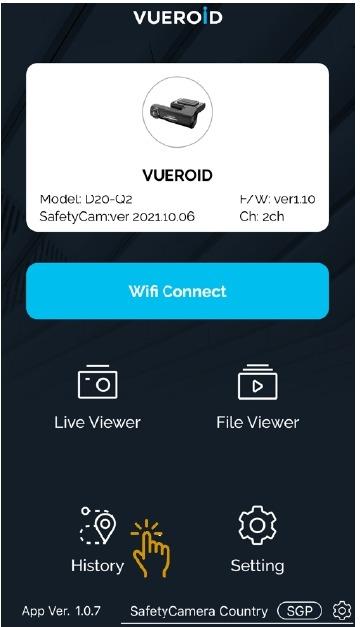

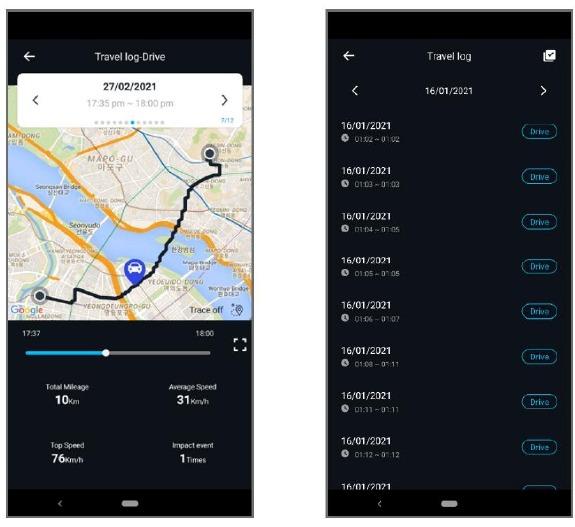

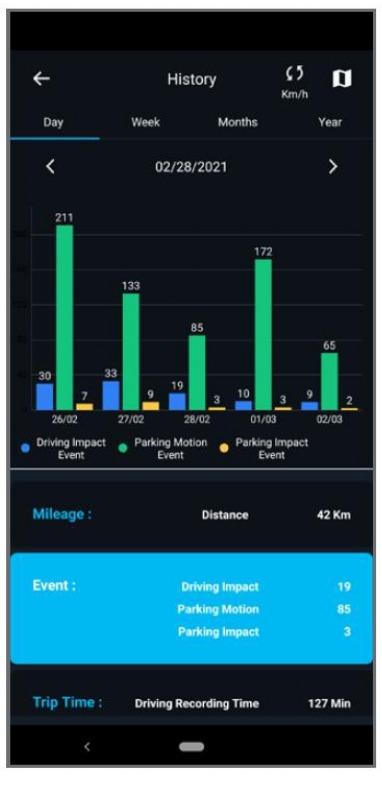

5.0  HISTORY



Yours Itineraries can be safely stored in the History Menu so that you can access all your previous car rides.
Plus, Travel-log drive will help drivers or fleet managers to find a vehicle’s current Location using the VUEROID Mobile app.

Captured by the VUEROID Built-in antenna, the vehicle’s location, speed, and direction of travel is shown in the mobile app on a Google maps display.

It logs every trip you take and reports like mileage and trip time, as well as any impact events that might have occurred on the road.
